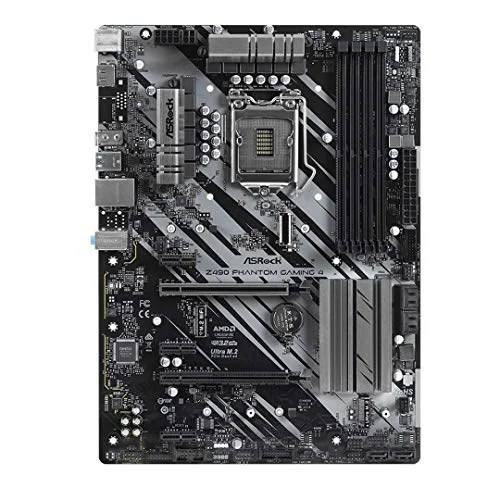

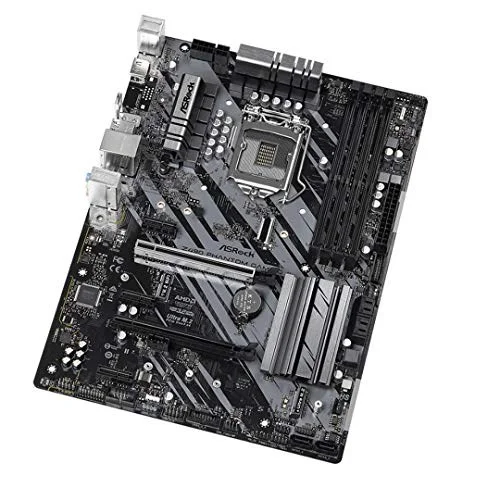

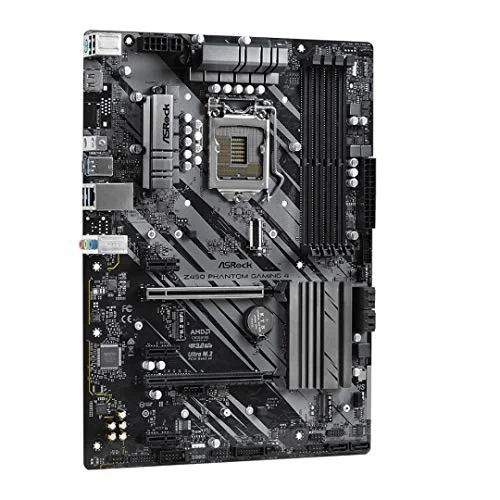

ASRock Z490 Phantom Gaming 4 LGA1200 ATX DDR4 128 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The ASRock Z490 Phantom Gaming 4 is a ATX motherboard for LGA1200. It supports DDR4 memory up to 4400 MT/s (OC).
- Supports 10 Th Gen Intel Core Processors (Socket 1200)
- 10 Power Phase Design
- Supports DDR4 4400Mhz+ (OC)
- 2 Pcie 3.0 X16, 3 Pcie 3.0 X1, 1 M.2(Key E) For Wifi
- AMD Quad Crossfirex And Crossfirex
Specifications
| Manufacturer | ASRock |
|---|---|
| Model Number | Z490 Phantom Gaming 4 90-MXBC60-A0UAYZ 90-MXBD20-A0UAYZ |
| Launch Date | May 2020 |
| CPU Socket | LGA1200 |
| Chipset Model | Intel Z490 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3200 / DDR4-3600 / DDR4-3733 / DDR4-3800 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4333 / DDR4-4400 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 3 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 3 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2260 / 2280 / 22110 - M Key, 2230 - E Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 1 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | Z490 Phantom Gaming 4 |
| SKU Code | Z490 Phantom Gaming 4 |
| GTIN / EAN | 4710483930737 |
Price History (last 12 months)
Plots available price points within the past 12 months.
