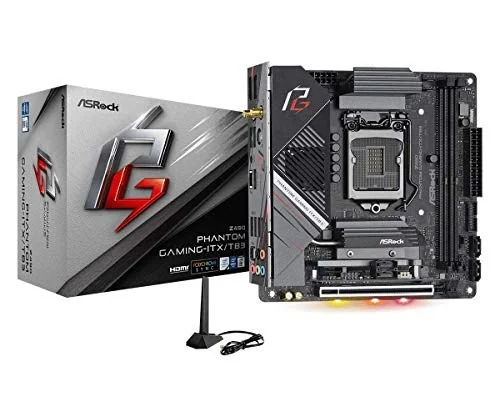

ASRock Z490 Phantom Gaming-ITX/TB3 LGA1200 Mini-ITX DDR4 64 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The ASRock Z490 Phantom Gaming-ITX/TB3 is a Mini-ITX motherboard for LGA1200. It supports DDR4 memory up to 4666 MT/s (OC).
- Supports DDR4 4666Mhz+ (OC)
- 1 Pcie 3. 0 X16
- Supports 10 Th Gen And Future Generation Intel Core Processors (Socket 1200)
- Graphics Output Options: HDMI, Displayport, Intel Thunderbolt 3
-
- 1 CH HD Audio (Realtek ALC1220 Audio Codec), Nahimic Audio
Specifications
| Manufacturer | ASRock |
|---|---|
| Model Number | Z490 Phantom Gaming-ITX/TB3 90-MXBC40-A0UAYZ |
| Launch Date | May 2020 |
| CPU Socket | LGA1200 |
| Chipset Model | Intel Z490 |
| Board Size / Form Factor | Mini-ITX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 2 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3200 / DDR4-3600 / DDR4-3733 / DDR4-3800 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4333 / DDR4-4400 / DDR4-4500 / DDR4-4600 / DDR4-4666 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2280 - M Key, 2260 / 2280 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6 (802.11ax) |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 1 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | Z490 Phantom Gaming-ITX/TB3 |
| SKU Code | Z490 Phantom Gaming-ITX/TB3 |
| GTIN / EAN | 4710483931192 |
