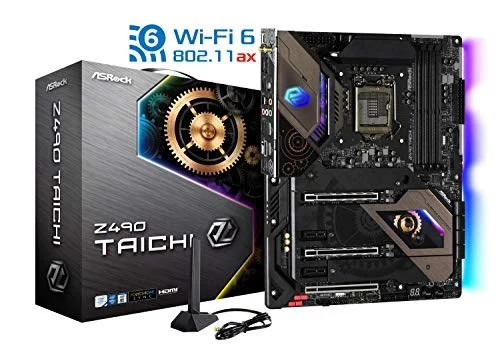

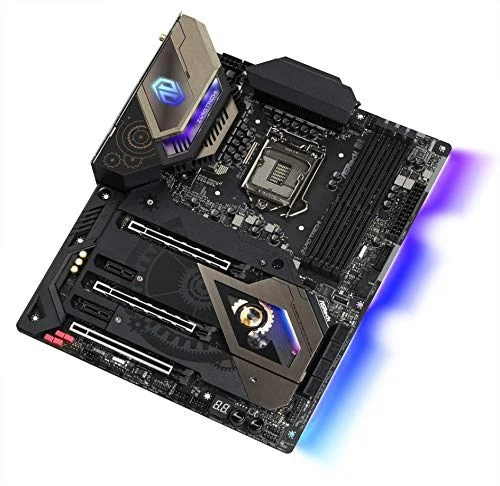

ASRock Z490 Taichi LGA1200 ATX DDR4 128 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The ASRock Z490 Taichi is a ATX motherboard for LGA1200. It supports DDR4 memory up to 4666 MT/s (OC).
- Supports 10 Th Gen And Future Generation Intel Core TM Processors
- (Socket 1200)
- 14 Phase Dr.MOS Power Design
- Supports DDR4 4666Mhz+ (OC)
- 3 Pcie 3.0 X16, 2 Pcie 3.0 X1
- Supports NVIDIA SLI TM , AMD 3-Way Crossfirex
Specifications
| Manufacturer | ASRock |
|---|---|
| Model Number | Z490 Taichi 90-MXBBQ0-A0UAYZ |
| Launch Date | May 2020 |
| CPU Socket | LGA1200 |
| Chipset Model | Intel Z490 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3200 / DDR4-3600 / DDR4-3733 / DDR4-3800 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4333 / DDR4-4400 / DDR4-4500 / DDR4-4600 / DDR4-4666 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16, 2 × PCIe x1 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2280 - M Key, 2260 / 2280 - M Key, 2230 / 2242 / 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 8 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6 (802.11ax) |

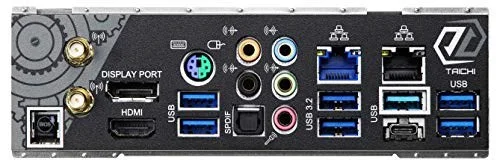

| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | Z490 Taichi |
| SKU Code | Z490 Taichi |
| GTIN / EAN | 4710483931185 |
Price History (last 12 months)
Plots available price points within the past 12 months.
