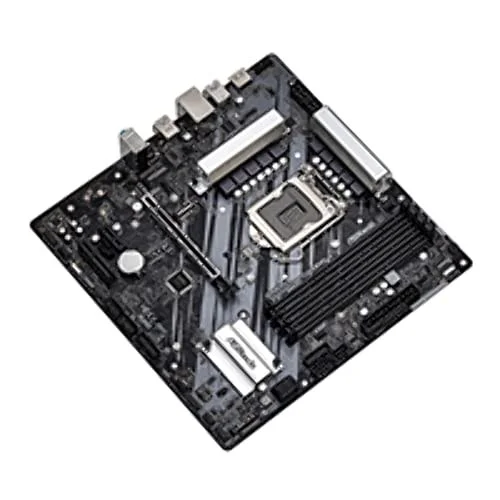

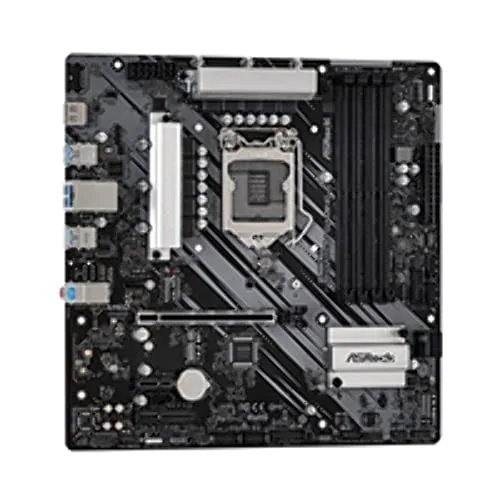

ASROCK Z590M Phantom Gaming 4 LGA1200 Micro-ATX DDR4 128 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The ASROCK Z590M Phantom Gaming 4 is a Micro-ATX motherboard for LGA1200. It supports DDR4 memory up to 4800 MT/s (OC).
- Asrock USB 3.2 Gen2
- Asrock Intel 4-Layer Memory POOL (Planes On Outer Layers) Technology
- Supports 10Th Gen Intel Core Processors And 11Th Gen Intel Core Processors (LGA1200)
- Chipset: Intel Z590
- Dual Channel DDR4 Memory Technology
Specifications
| Manufacturer | ASRock |
|---|---|
| Model Number | Z590M Phantom Gaming 4 90-MXBFB0-A0UAYZ |
| Launch Date | March 2021 |
| CPU Socket | LGA1200 |
| Chipset Model | Intel Z590 |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-3200 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3800 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4600 / DDR4-4800 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16, 1 × PCIe x4, 1 × PCIe x1 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 1 |
| PCIe x1 (Qty) | 1 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2280 - M Key (Intel 11th Gen only), 2280 - M Key, 2230 - E Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |

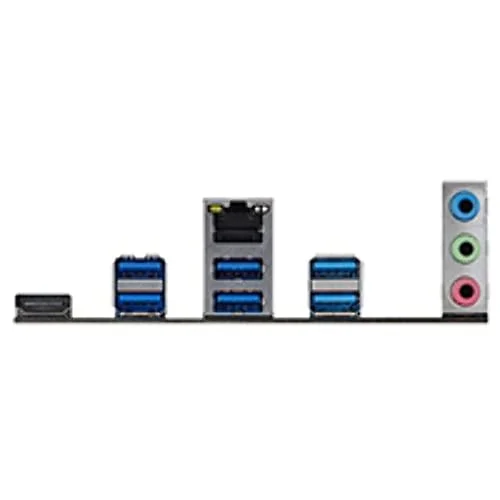

| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | Z590M Phantom Gaming 4 |
| SKU Code | Z590M Phantom Gaming 4 |
| GTIN / EAN | 4710483933851 |
Price History (last 12 months)
Plots available price points within the past 12 months.
