ASRock Z690 STEEL LEGEND/D5 LGA1700 ATX DDR5 192 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
£50.74 | - |
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

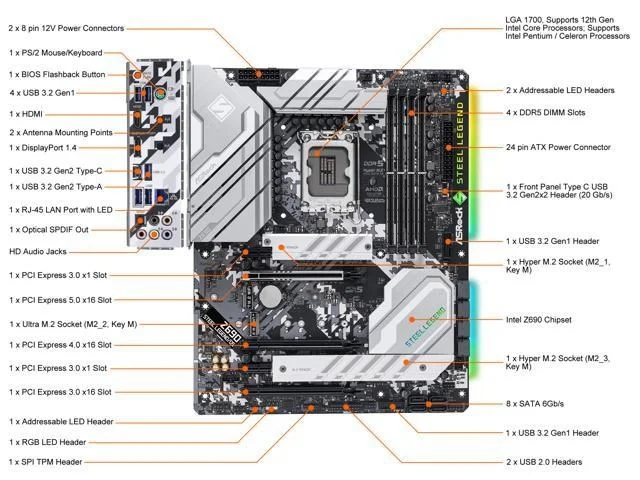

The ASRock Z690 STEEL LEGEND/D5 is a ATX motherboard for LGA1700. It supports DDR5 memory up to 6400 MT/s (OC).
- ASRock Z690 STEEL LEGEND/D5 LGA 1700 Intel Z690 SATA 6Gb/s ATX Intel Motherboard Memory Standard: DDR5 6000+(OC)* * 1DPC 1R Up to 6000+ (OC), 4800 Natively. * 1DPC 2R Up to 5600+ (OC), 4400 Natively. * 2DPC 1R Up to 4800+ (OC), 4000 Natively. * 2DPC 2R Up to 4800+ (OC), 3600 Natively. Number of Memory Slots: 4x288pin (DDR5) Audio Chipset: Realtek ALC897 PCI Express 5.0 x16: 1 x PCI Express 5.0 x16 * Actual support may vary by CPU. * Supports NVMe SSD as boot disks. PCI Express 4.0 x16: 1 x PCI Express 4.0 x16 * Supports x4 mode. * Supports NVMe SSD as boot disks. PCI Express 3.0 x16: 1 x PCI Express 3.0 x16 * Supports x4 mode. * Supports NVMe SSD as boot disks. Onboard Video Chipset: Supported only by CPU with integrated graphic Max LAN Speed: 10/100/1000/2500Mbps
Specifications
| Manufacturer | ASRock |
|---|---|
| Model Number | Z690 STEEL LEGEND/D5 90-MXBIK0-A0UAYZ |
| Launch Date | |
| CPU Socket | LGA1700 |
| Chipset Model | Intel Z690 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 192 GB |
| Valid DDR4 Speeds | DDR5-4800 / DDR5-5000 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16, 2 × PCIe x1 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 4 × M.2 |
| M.2 Device Compatibility | 2260 / 2280 - M Key, 2230 / 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 / 22110 - M Key, 2230 - E Key |
| SATA III Ports | 8 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 1 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | Z690 STEEL LEGEND/D5 |
| SKU Code | Z690 STEEL LEGEND/D5 |
| GTIN / EAN | 4710483937408 |
