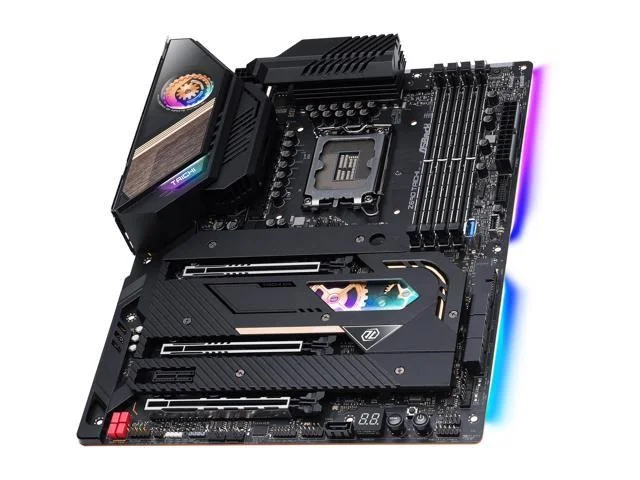

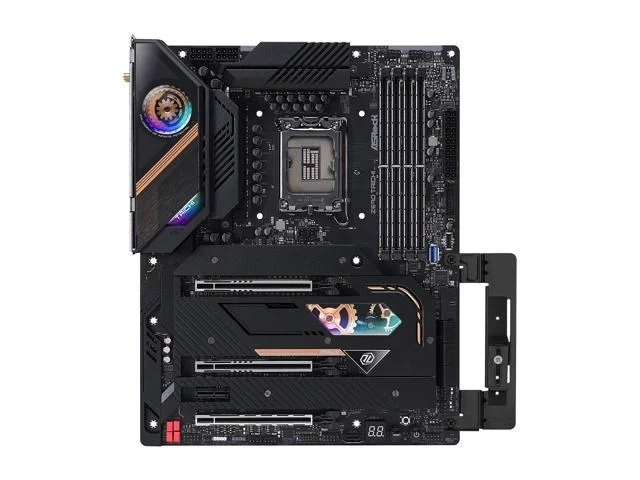

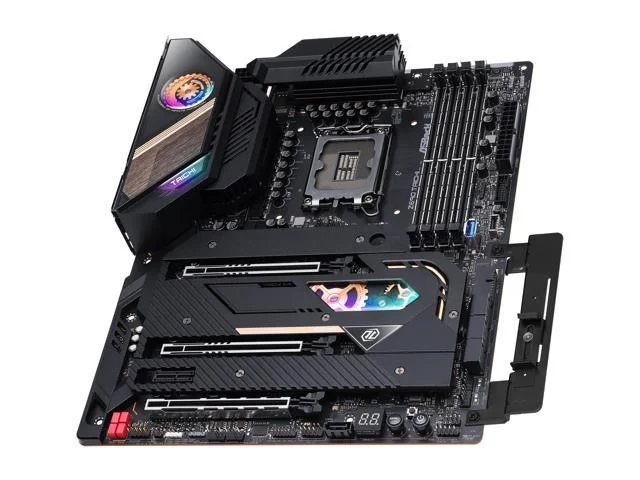

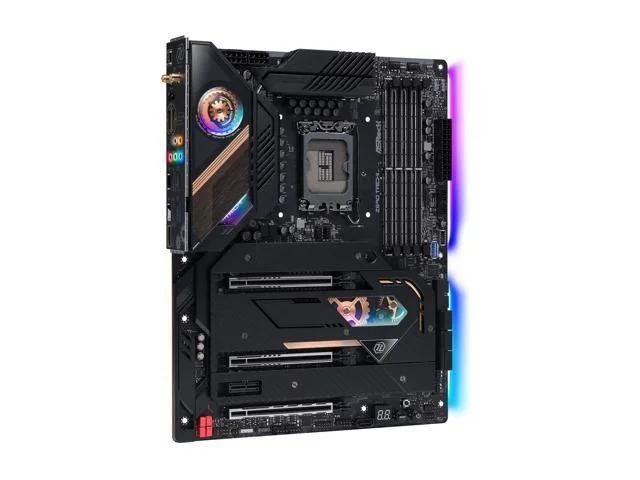

ASRock Z690 Taichi LGA1700 ATX DDR5 192 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The ASRock Z690 Taichi is a ATX motherboard for LGA1700. It supports DDR5 memory up to 6400 MT/s (OC).

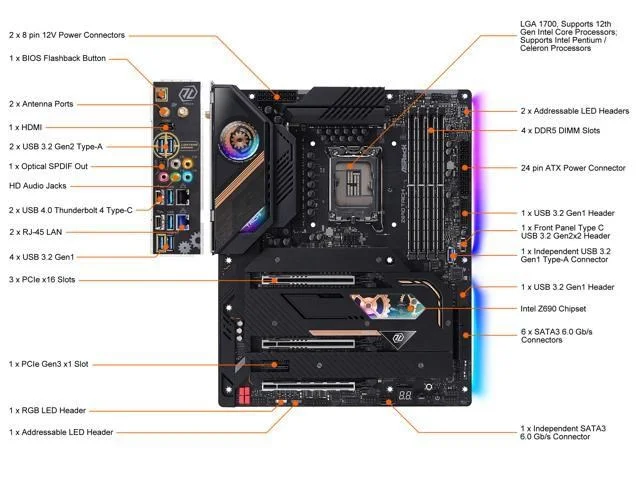

- ASRock Z690 Taichi LGA 1700 Intel Z690 SATA 6Gb/s DDR5 ATX Intel Motherboard Memory Standard: DDR5 6400+(OC)* * Supports DDR5 4400 (1DPC) / 3600 (2DPC) natively. Number of Memory Slots: 4×288pin (DDR5) Audio Chipset: Realtek ALC1220 PCI Express 5.0 x16: 3 x PCIe x16 Slots (PCIE1/PCIE2/PCIE4: single at Gen5x16 (PCIE1); dual at Gen5x8 (PCIE1) / Gen5x8 (PCIE2); triple at Gen5x8 (PCIE1) / Gen5x8 (PCIE2) / Gen4x4 (PCIE4))* * Supports NVMe SSD as boot disks. Onboard Video Chipset: Supported only by CPU with integrated graphic Max LAN Speed: 10/100/1000/2500Mbps + 10/100/1000Mbps CPU Type: Supports 12th Gen Intel Core Processors Supports Intel Pentium / Celeron Processors Supported CPU Technologies: Turbo Boost Technology 3.0
Specifications
| Manufacturer | ASRock |
|---|---|
| Model Number | Z690 Taichi 90-MXBGV0-A0UAYZ |
| Launch Date | |
| CPU Socket | LGA1700 |
| Chipset Model | Intel Z690 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 192 GB |
| Valid DDR4 Speeds | DDR5-4800 / DDR5-5000 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16, 1 × PCIe x1 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 1 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2280 - M Key, 2242 / 2260 / 2280 - M Key, 2230 / 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6 (802.11ax) |
| Rear-Panel USB | USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 1 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | Z690 Taichi |
| SKU Code | Z690 Taichi |
| GTIN / EAN | 4710483936098 |
