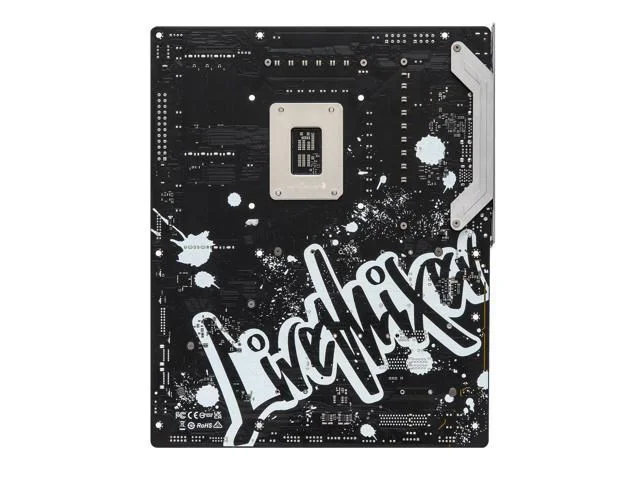

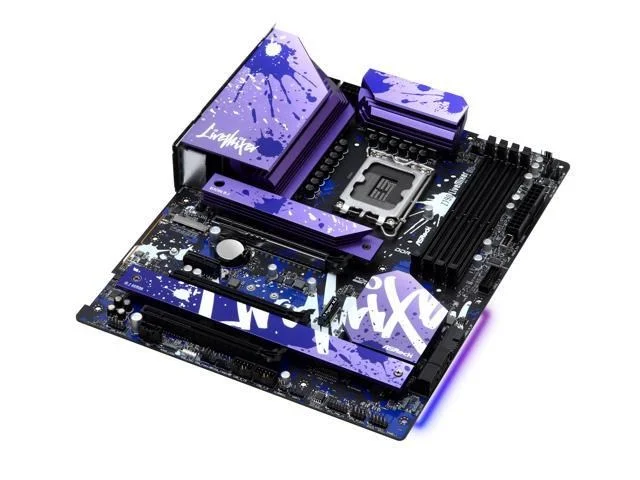

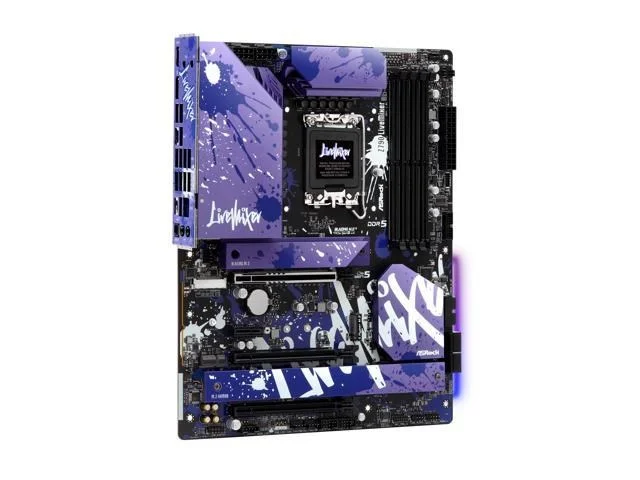

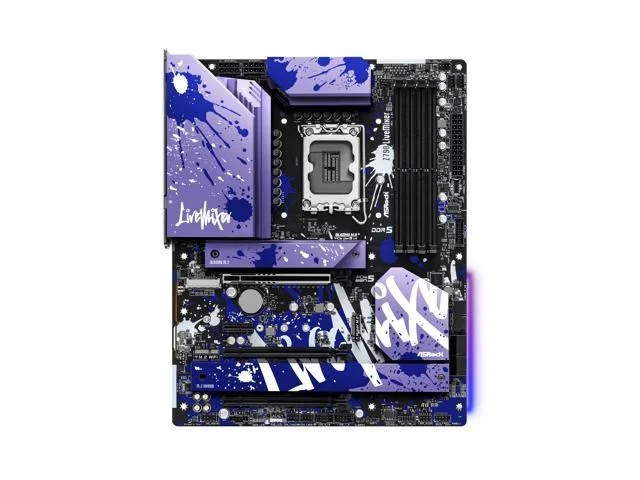

ASRock Z790 LiveMixer LGA1700 ATX DDR5 192 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
Free | - |
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The ASRock Z790 LiveMixer is a ATX motherboard for LGA1700. It supports DDR5 memory up to 6800 MT/s (OC).
- ASRock Z790 LiveMixer LGA 1700 Intel Z790 SATA 6Gb/s DDR5 ATX Motherboards Memory Standard: Supports DDR5 non-ECC, un-buffered memory up to 6800+(OC)* 1DPC 1R Up to 6800+ MHz (OC), 4800 MHz Natively. 1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively. 2DPC 1R Up to 5600+ MHz (OC), 4000 MHz Natively. 2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively. - Supports Intel Extreme Memory Profile (XMP) 3.0 Number of Memory Slots: 4x288pin (DDR5) Audio Chipset: Realtek ALC897 Audio Codec - Nahimic Audio PCI Express 5.0 x16: 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* * If M2_1 is occupied, PCIE1 will downgrade to x8 mode. * Supports NVMe SSD as boot disks - Supports AMD CrossFire PCI Express 4.0 x16: 2 x PCIe 4.0 x16 Slots (PCIE3 and PCIE4), support x4 mode* Max LAN Speed: 2.5Gbps
Specifications
| Manufacturer | ASRock |
|---|---|
| Model Number | Z790 LiveMixer Z790 Live Mixer |
| Launch Date | October 2022 |
| CPU Socket | LGA1700 |
| Chipset Model | Intel Z790 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 192 GB |
| Valid DDR4 Speeds | DDR5-4400 / DDR5-4800 / DDR5-5200 / DDR5-5600 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6800 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16, 1 × PCIe x1 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 1 |
| M.2 Slot Count | 6 × M.2 |
| M.2 Device Compatibility | 2260 / 2280 - M Key, 2260 / 2280 - M Key, 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key, 2260 / 2280 - M Key, 2230 - E Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 1 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | Z790 LiveMixer |
| SKU Code | Z790 LiveMixer |
| GTIN / EAN | 4710483940897 |
