ASRock Z790 PG-ITX/TB4 LGA1700 Mini-ITX DDR5 64 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

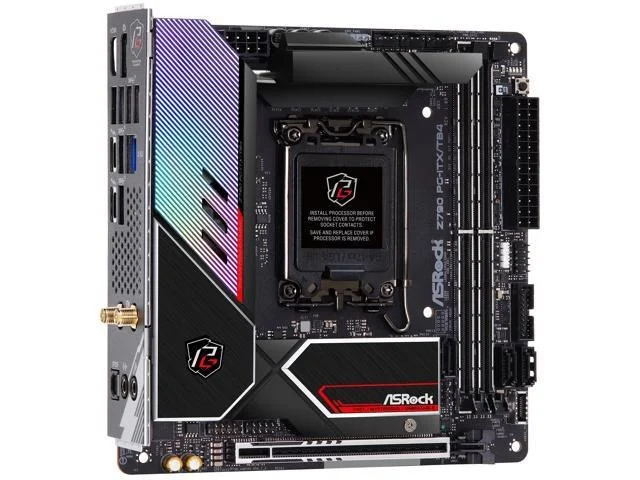

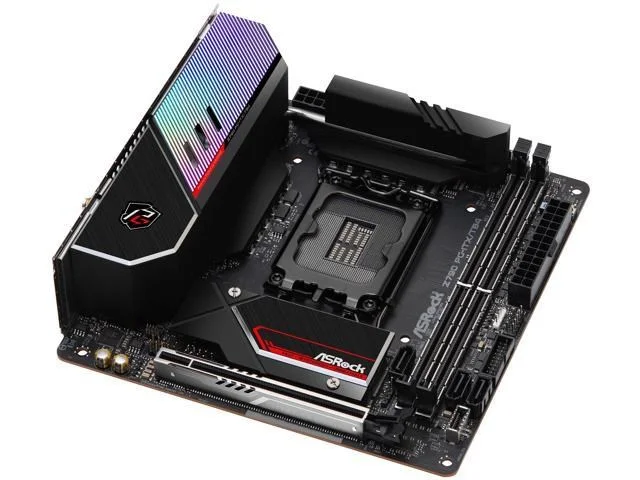

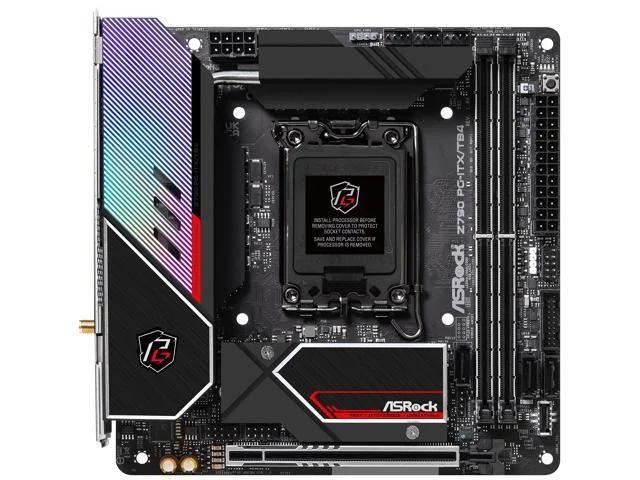

The ASRock Z790 PG-ITX/TB4 is a Mini-ITX motherboard for LGA1700. It supports DDR5 memory up to 6400 MT/s (OC).
- ASRock Z790 PG-ITX/TB4 LGA 1700 Intel Z790 SATA 6Gb/s DDR5 Mini ITX Motherboard Memory Standard: Supports DDR5 non-ECC, un-buffered memory up to 6600+(OC)* 1DPC 1R Up to 6600+ MHz (OC), 5600 MHz Natively. 1DPC 2R Up to 5200+ MHz (OC), 5200 MHz Natively. Number of Memory Slots: 2x288pin (DDR5) Audio Chipset: Realtek ALC4082 PCI Express 5.0 x16: 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* * Supports PCIe riser cards to extend one x16 slot to two x8 slots * Supports NVMe SSD as boot disks Max LAN Speed: 2.5Gbps CPU Type: Supports 13th / 12th Gen Intel Core Processors, Intel Pentium Gold, Celeron Processors Maximum Memory Supported: 64GB Channel Supported: Dual Channel
Specifications
| Manufacturer | ASRock |
|---|---|
| Model Number | Z790 PG-ITX/TB4 |
| Launch Date | October 2022 |
| CPU Socket | LGA1700 |
| Chipset Model | Intel Z790 |
| Board Size / Form Factor | Mini-ITX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 2 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR5-4400 / DDR5-4800 / DDR5-5200 / DDR5-5600 / DDR5-6000 / DDR5-6200 / DDR5-6400 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 4 × M.2 |
| M.2 Device Compatibility | 2280 - M Key, 2280 - M Key, 2280 - M Key, 2230 - E Key |
| SATA III Ports | 3 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6E (802.11ax, 6 GHz) |

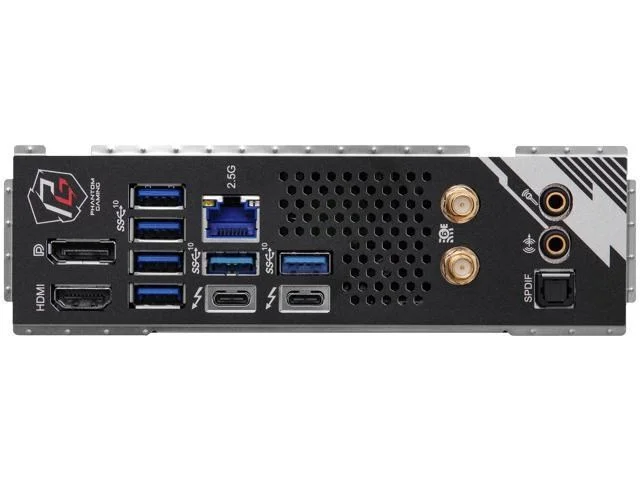

| Rear-Panel USB | USB 3.2 Gen2x2, USB 3.2 Gen1 |
| Internal USB 3.2 Gen 2x2 Headers | 1 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 0 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | Z790 PG-ITX/TB4 |
| SKU Code | Z790 PG-ITX/TB4 |
| GTIN / EAN | 4710483941108 |
