ASRock Z790 TAICHI CARRARA LGA1700 EATX DDR5 192 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

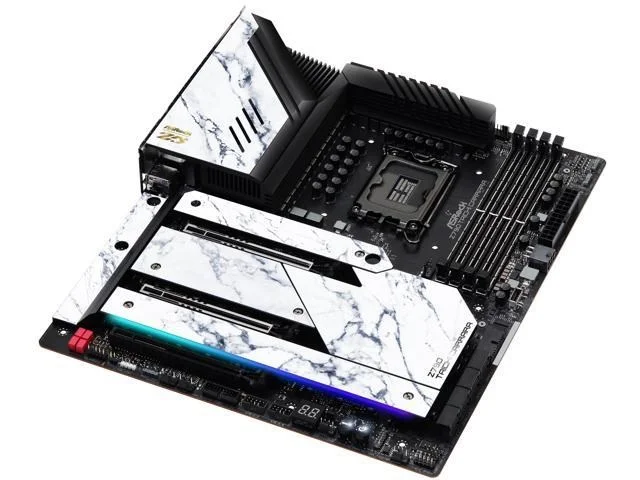

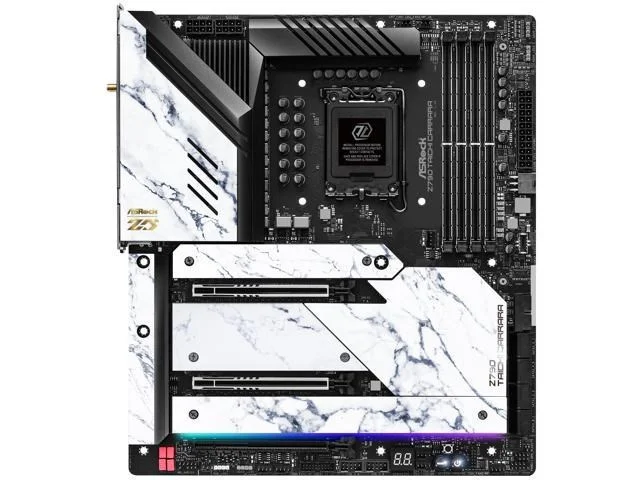

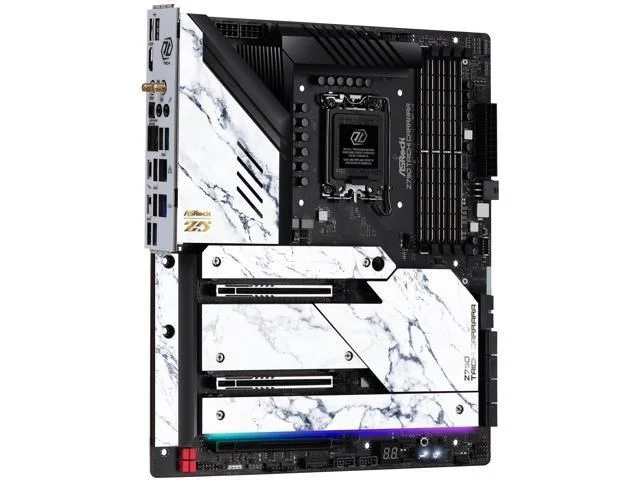

The ASRock Z790 TAICHI CARRARA is a EATX motherboard for LGA1700. It supports DDR5 memory up to 6600 MT/s (OC).
- ASRock Z790 TAICHI CARRARA LGA 1700 Intel Z790 SATA 6Gb/s DDR5 EATX Intel Motherboard Memory Standard: DDR5 4800 Number of Memory Slots: 4x288pin (DDR5) Audio Chipset: Realtek ALC4082 PCI Express 5.0 x16: 2 x PCIe 5.0 x16 Slots (PCIE1 and PCIE2), support x16 or x8/x8 modes* PCI Express 4.0 x16: 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode* * If PCIE2 is occupied, M2_1 will be disabled. * If PCIE3 is occupied, SATA3_0~4 will be disabled. * Supports NVMe SSD as boot disks Max LAN Speed: 2.5Gbps CPU Type: Supports 13th / 12th Gen Intel Core Processors, Intel Pentium Gold, Celeron Processors Maximum Memory Supported: 128GB
Specifications
| Manufacturer | ASRock |
|---|---|
| Model Number | Z790 TAICHI CARRARA |
| Launch Date | October 2022 |
| CPU Socket | LGA1700 |
| Chipset Model | Intel Z790 |
| Board Size / Form Factor | EATX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 192 GB |
| Valid DDR4 Speeds | DDR5-4800 / DDR5-5200 / DDR5-5600 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 5 × M.2 |
| M.2 Device Compatibility | 2280 - M Key, 2280 - M Key, 2260 / 2280 - M Key, 2260 / 2280 - M Key, 2260 / 2280 - M Key |
| SATA III Ports | 8 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6E (802.11ax, 6 GHz) |

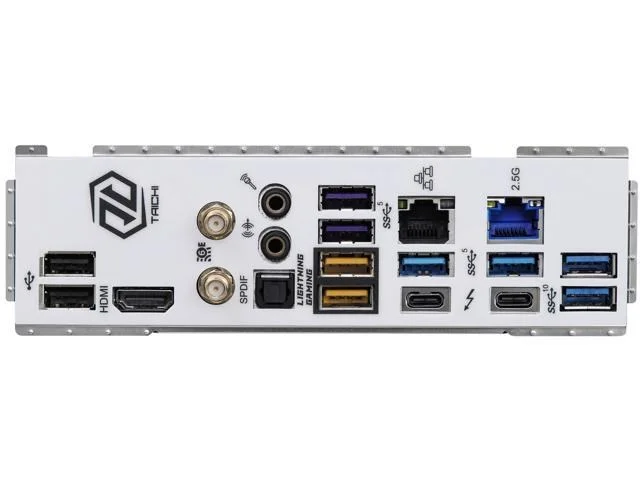

| Rear-Panel USB | USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 1 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | Z790 TAICHI CARRARA |
| SKU Code | Z790 TAICHI CARRARA |
| GTIN / EAN | 4710483941092 |
