ASRock Z87 Extreme6 LGA1150 ATX DDR3 32 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The ASRock Z87 Extreme6 is a ATX motherboard for LGA1150. It supports DDR3 memory up to 2800 MT/s (OC).
- A-Style : Home Cloud, Purity Sound, HDMI-In
- Supports 4th Gen Intel Core i7 / i5 / i3 / Xeon / Pentium / Celeron in LGA1150 Package
- Premium Gold Capacitor Design, Digi Power, 12 Power Phase Design, Dual-Stack MOSFET
- Supports Dual Channel DDR3 2933+(OC)
- 3 x PCIe 3.0 x16, 1 x PCIe 2.0 x1, 1 x mini-PCIe
- Supports AMD Quad CrossFireX, 3-Way CrossFireX and CrossFireX
- Supports NVIDIA Quad SLI and SLI

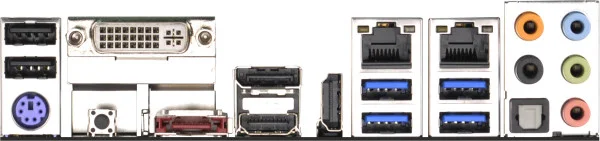

- Multi VGA Output Options : DVI-I, HDMI, DisplayPort
- Intel Dual Gigabit LAN with Teaming
- 7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec), Supports DTS Connect
- 10 x SATA3, 1 x eSATA, 8 x USB 3.0, 7 x USB 2.0
- 1 x Front USB 3.0 Panel with 2.5" HDD/SSD Rack, 1 x Rear USB 3.0 Bracket
- Supports A-Tuning, XFast 555, Easy Driver Installer, FAN-Tastic Tuning, USB Key
- Very good onboard audio
- Overclock capabilities
- Legacy PCI slot
- Dual Intel LAN
- OC Tweaker not so accurate
Specifications
| Manufacturer | ASRock |
|---|---|
| Model Number | Z87 EXTREME6 |
| Launch Date | June 2013 |
| CPU Socket | LGA1150 |
| Chipset Model | Intel Z87 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR3 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 32 GB |
| Valid DDR4 Speeds | DDR4-1066 / DDR4-1333 / DDR4-1600 / DDR4-1866 / DDR4-2133 / DDR4-2400 / DDR4-2800 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16, 1 × PCIe x1 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 1 |
| M.2 Slot Count | 0 × M.2 |
| M.2 Device Compatibility | |
| SATA III Ports | 10 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | GbE LAN |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 3 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | Z87 EXTREME6 |
| SKU Code | Z87 EXTREME6 |
| GTIN / EAN | 1.3201211984e+10 |
