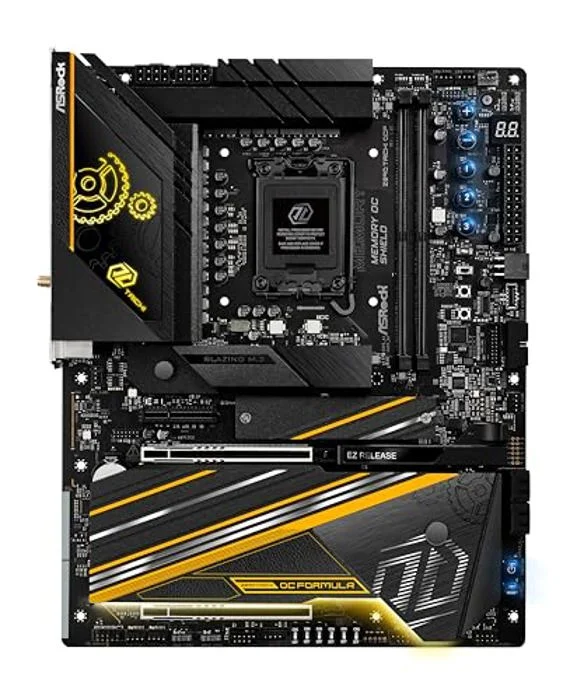

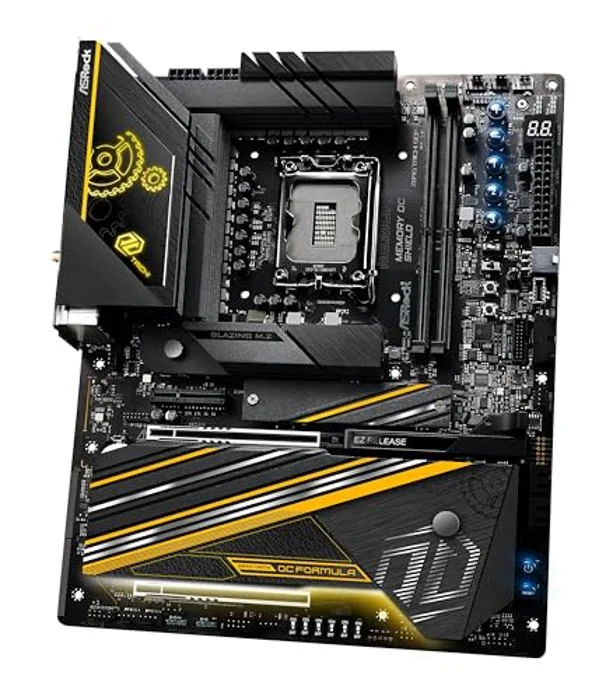

ASRock Z890 Taichi OCF LGA1851 ATX DDR5 128 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The ASRock Z890 Taichi OCF is a ATX motherboard for LGA1851. It supports DDR5 memory up to 9466 MT/s (OC).
- ASRock Z890 Taichi OCF LGA 1851 Intel Z890 SATA 6Gb/s ATX Motherboard Audio Chipset: Realtek ALC4082 Brand: ASRock CPU Socket Type: LGA 1851 Chipset: Intel Z890 Form Factor: ATX Maximum Memory Supported: 128GB Channel Supported: Dual Channel PCI Express x4: Chipset: - 1 x PCIe 4.0 x4 Slot (PCIE1), supports x4 mode* * PCIE3 supports PCIe riser cards to extend one x8 slot to x4/x4 slots. * Supports NVMe SSD as boot disks - Supports AMD CrossFire - 15µ Gold Contact in VGA PCIe Slots (PCIE2 and PCIE3)
Specifications
| Manufacturer | ASRock |
|---|---|
| Model Number | Z890 Taichi OCF |
| Launch Date | October 2024 |
| CPU Socket | LGA1851 |
| Chipset Model | Intel Z890 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 2 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR5-4400 / DDR5-4800 / DDR5-5200 / DDR5-5600 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 / DDR5-6800 / DDR5-7000 / DDR5-7200 / DDR5-7600 / DDR5-7800 / DDR5-8000 / DDR5-8200 / DDR5-8400 / DDR5-8800 / DDR5-9066 / DDR5-9200 / DDR5-9333 / DDR5-9466 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 1 × PCIe x4 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 1 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 7 × M.2 |
| M.2 Device Compatibility | 2280 - M Key, 2280 - M Key, 2260 / 2280 - M Key, 2260 / 2280 - M Key, 2260 / 2280 - M Key, 2260 / 2280 - M Key, E-key - E Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 7 (802.11be) |
| Rear-Panel USB | USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 1 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 1 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | Z890 Taichi OCF |
| SKU Code | Z890 Taichi OCF |
| GTIN / EAN | 4710483949678 |
