ASRock Z890M Riptide WiFi LGA1851 Micro-ATX DDR5 256 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

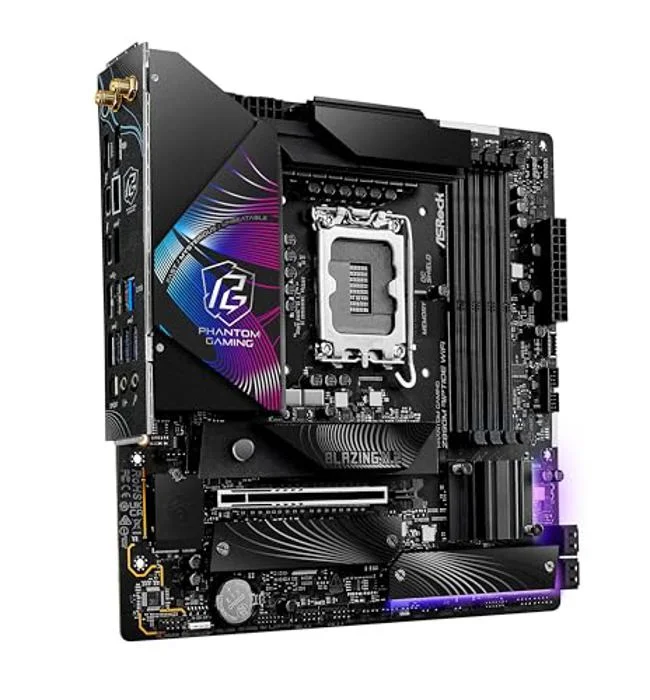

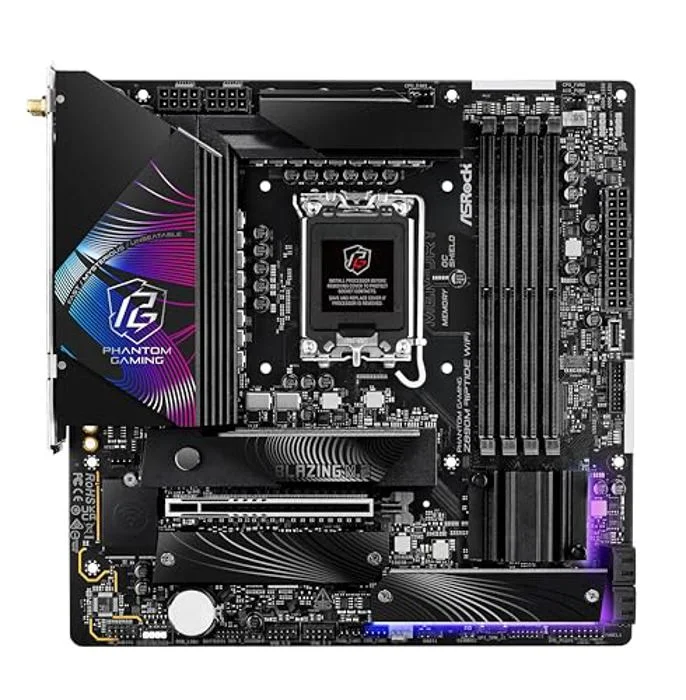

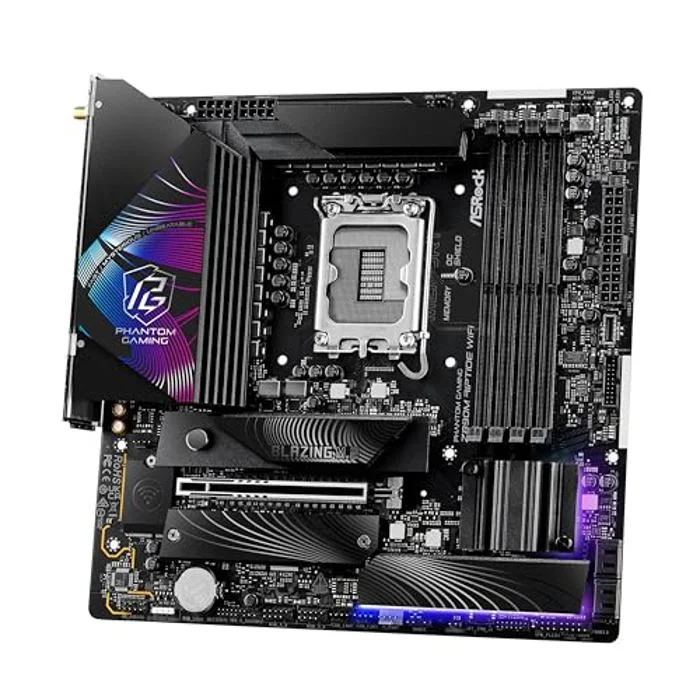

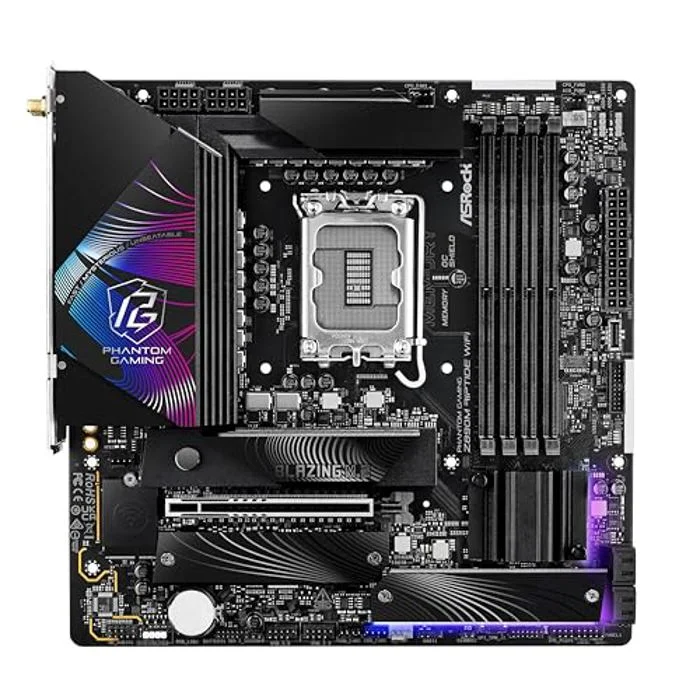

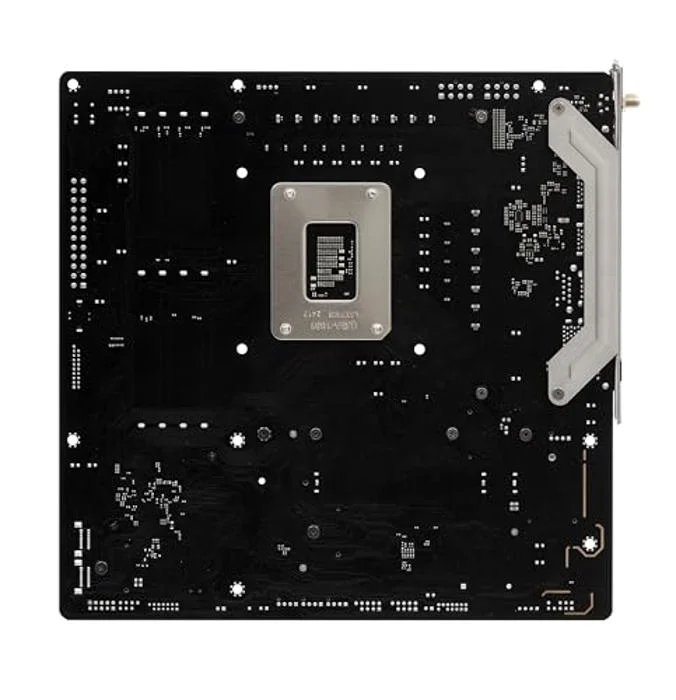

The ASRock Z890M Riptide WiFi is a Micro-ATX motherboard for LGA1851. It supports DDR5 memory up to 8400 MT/s (OC).
- Supports Intel Core Ultra Processors (Series 2) (LGA1851)
- 16+1+1+1+1 Power Phase, 80A Dr.MOS for VCore+GT+SA
- 4 x DDR5 DIMMs Supports Dual Channel, up to 9066+ (OC)
- Graphics Output Options: 1 HDMI, 1 DisplayPort, 2 Thunderbolt 4 Type-C
- Blazing M.2 (PCIe Gen5 x4)
- Toolless Multi-Layer M.2 Heatsink
Specifications
| Manufacturer | ASRock |
|---|---|
| Model Number | Z890M Riptide WiFi |
| Launch Date | October 2024 |
| CPU Socket | LGA1851 |
| Chipset Model | Intel Z890 |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 256 GB |
| Valid DDR4 Speeds | DDR5-4400 / DDR5-4800 / DDR5-5200 / DDR5-5600 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 / DDR5-6800 / DDR5-7000 / DDR5-7200 / DDR5-7600 / DDR5-7800 / DDR5-8000 / DDR5-8200 / DDR5-8400 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 4 × M.2 |
| M.2 Device Compatibility | 2280 - M Key, 2280 - M Key, 2280 - M Key, 2230 - E Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6E (802.11ax, 6 GHz) |
| Rear-Panel USB | USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 1 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | Z890M Riptide WiFi |
| SKU Code | Z890M Riptide WiFi |
| GTIN / EAN | 4710483949722 |
