ASRock Z97E-ITX/ac LGA1150 Mini-ITX DDR3 16 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

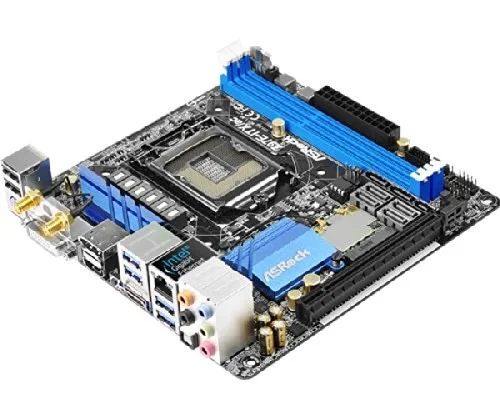

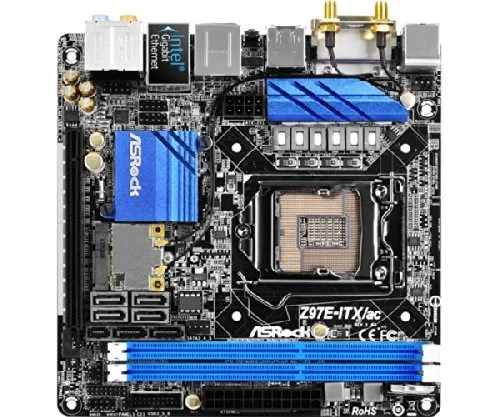

The ASRock Z97E-ITX/ac is a Mini-ITX motherboard for LGA1150. It supports DDR3 memory up to 2933 MT/s (OC).
- ASRock Super Alloy
-
- Premium 60A CPU Choke
-
- Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke)
-
- Dual-Stack MOSFET (DSM)
-
- NexFET MOSFET
-
- Nichicon 12K Platinum Caps (100% Japan made high quality conductive polymer capacitors)
-
- Sapphire Black PCB
- Supports 5th Generation Intel Core i7/i5/i3/Pentium/Celeron Processors (Socket 1150)
- Supports New 4th and 4th Generation Intel Xeon/Core i7/i5/i3/Pentium/Celeron Processors (Socket 1150)
- Digi Power
- Supports Dual Channel DDR3 3200+(OC), 15μ Gold Contact in DIMM Slots
- 1 PCIe 3.0 x16, 1 mini-PCIe for WiFi + BT Module, 15μ Gold Contact in VGA PCIe Slot (PCIE1)

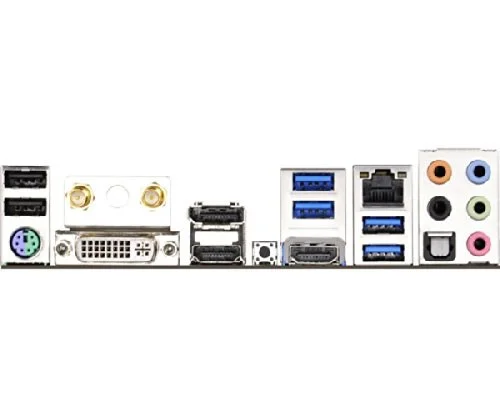

- VGA Output/Input Options: DVI-I, HDMI, HDMI-In, DisplayPort
- 7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec), Nichicon Fine Gold Series Audio Caps, Supports DTS Connect
- TI NE5532 Premium Headset Amplifier
- Intel Gigabit LAN
- 1 SATA Express, 6 SATA3, 1 M.2 (PCIe Gen2 x2 & SATA, Supports 30mm and 42mm M.2 devices), 6 USB 3.0 (2 Front, 4 Rear), 6 USB 2.0 (4 Front, 2 Rear)
- WLAN: 1 x 2T2R Dual Band 802.11ac WiFi + BT v4.0 Module, 1 x ASRock WiFi 2.4/5 GHz Antenna
- Supports ASRock Full Spike Protection, ASRock Cloud, APP Shop, A-Tuning, Full HD UEFI
- Full ATX-level performance
- Support for M.2 storage (on back of board)
- 802.11ac Wi-Fi
- Very good onboard audio
Specifications
| Manufacturer | ASRock |
|---|---|
| Model Number | Z97E-ITX/ac |
| Launch Date | May 2014 |
| CPU Socket | LGA1150 |
| Chipset Model | Intel Z97 |
| Board Size / Form Factor | Mini-ITX |
| Supported Memory Type | DDR3 |
| DIMM Slots | 2 |
| Maximum RAM Capacity | 16 GB |
| Valid DDR4 Speeds | DDR4-1066 / DDR4-1333 / DDR4-1600 / DDR4-1866 / DDR4-2133 / DDR4-2400 / DDR4-2800 / DDR4-2933 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 1 × M.2 |
| M.2 Device Compatibility | 2230 / 2242 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 1 |
| Wired Networking (LAN) | GbE LAN |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 5 |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | Z97E-ITX/ac |
| SKU Code | Z97E-ITX/ac |
| GTIN / EAN | 807030513643 |
