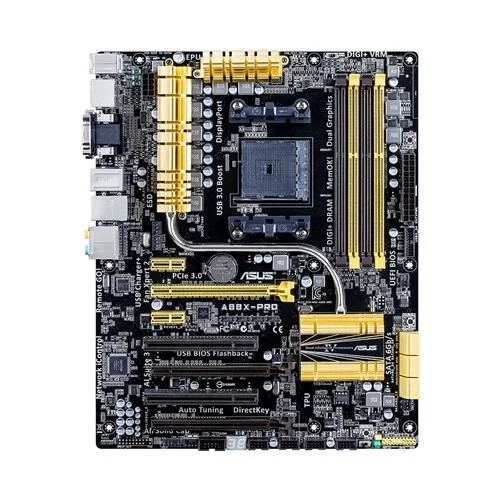

ASUS A88X-Pro FM2+ ATX DDR3 64 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The ASUS A88X-Pro is a ATX motherboard for FM2+. It supports DDR3 memory up to 2400 MT/s (OC).
- Dual Intelligent Processors 4 with 4-Way Optimization
- 4-Way Optimization - One Click and Done! Top-up Performance, Efficiency, Digital Power, and System Cooling
- GPU Boost - Unlock integrated graphics performance for up to 30% boost
- 5X PROTECTION - All-round protection provides the best quality, reliability, and durability
- New UEFI BIOS - Full-scale Performance Tuning with Intuitive BIOS Interface
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | A88X-Pro |
| Launch Date | March 2014 |
| CPU Socket | FM2+ |
| Chipset Model | Intel A88X |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR3 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-1333 / DDR4-1600 / DDR4-1866 / DDR4-2133 / DDR4-2200 / DDR4-2250 / DDR4-2400 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16, 2 × PCIe x1 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 0 × M.2 |
| M.2 Device Compatibility | |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |

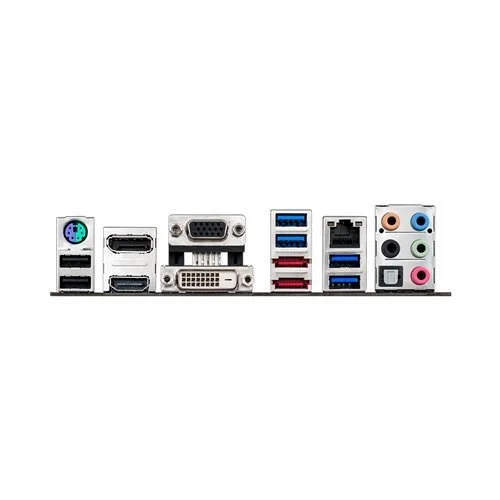

| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 4 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | A88X-Pro |
| SKU Code | A88X-Pro |
| GTIN / EAN | 8.8622759971e+10 |
