ASUS B85M-G LGA1150 Micro-ATX DDR3 32 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

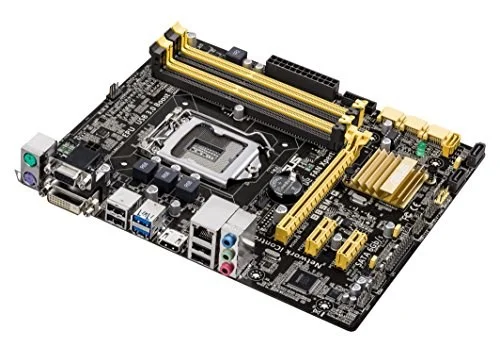

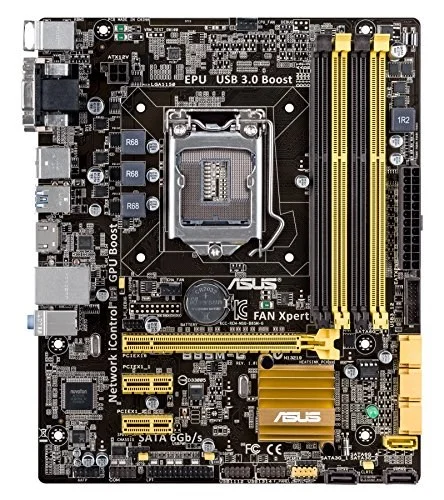

The ASUS B85M-G is a Micro-ATX motherboard for LGA1150. It supports DDR3 memory up to 1600 MT/s (OC).
- ASUS 5X Protection: All-Round Protection Provides The Best Quality, Reliability, And Durability
- USB 3.0 BOOST (UASP Support): 170% Faster Transfer Speeds Than Traditional USB 3.0
- Network Icontrol: Real-Time Network Bandwidth Management
- Fan Xpert :Dedicated CPU And Case Fan Controls
- Crash Free BIOS 3: Restore Corrupted BIOS Data From USB Storage
- AI Suite 3: One-Stop Access To Innovative ASUS Features
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | B85M-G |
| Launch Date | October 2019 |
| CPU Socket | LGA1150 |
| Chipset Model | Intel B85 |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR3 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 32 GB |
| Valid DDR4 Speeds | DDR4-1066 / DDR4-1333 / DDR4-1600 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16, 2 × PCIe x1 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 0 × M.2 |
| M.2 Device Compatibility | |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | No |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | B85M-G |
| SKU Code | B85M-G |
| GTIN / EAN | 886227480067 |
