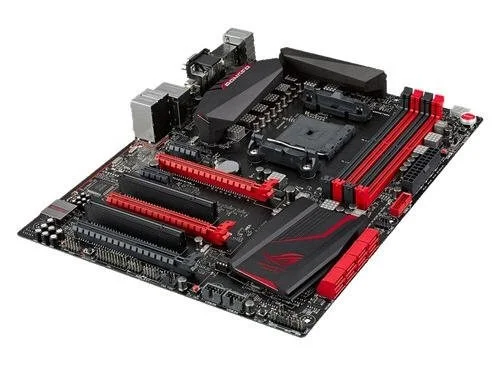

ASUS CROSSBLADE RANGER FM2+ ATX DDR3 64 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The ASUS CROSSBLADE RANGER is a ATX motherboard for FM2+. It supports DDR3 memory up to 2666 MT/s (OC).
- AMD Socket FM2+ Athlon/A-series processors
- AMD A88X FCH (Bolton D4) chipset
- Intel Ethernet + LANGuard + Game First III - Game networking taken to the next level
- SupremeFX 2014 + Sonic Radar II - New and improved audio that’s beyond compare
- KeyBot - An instant keyboard upgrade
- Gamer’s Guardian - All-round protection for the best quality, reliability and durability
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | CROSSBLADE RANGER |
| Launch Date | |
| CPU Socket | FM2+ |
| Chipset Model | Intel A88X |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR3 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-1333 / DDR4-1600 / DDR4-1866 / DDR4-2133 / DDR4-2200 / DDR4-2250 / DDR4-2400 / DDR4-2666 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16, 2 × PCIe x1 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 0 × M.2 |
| M.2 Device Compatibility | |
| SATA III Ports | 8 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 3 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | CROSSBLADE RANGER |
| SKU Code | CROSSBLADE RANGER |
| GTIN / EAN | 886227812967 |
