Asus H110M-E/M.2 LGA1151 Micro-ATX DDR4 32 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

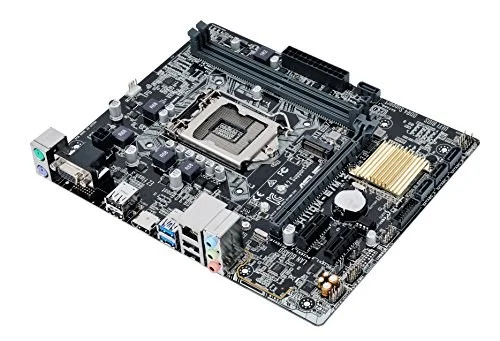

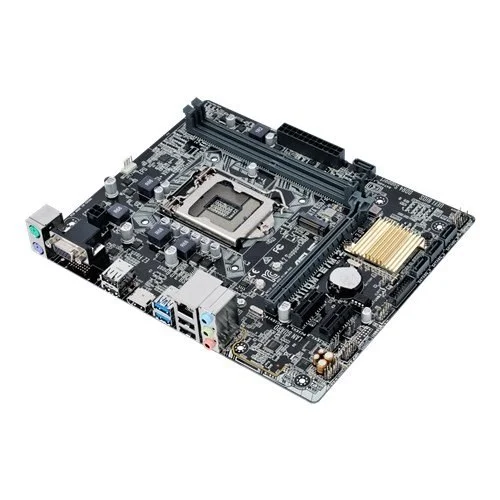

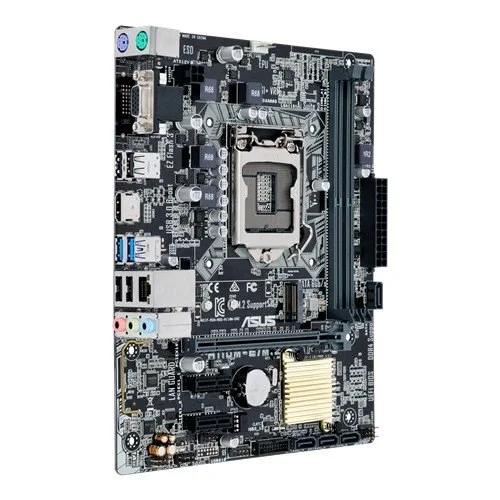

The Asus H110M-E/M.2 is a Micro-ATX motherboard for LGA1151. It supports DDR4 memory up to 2133 MT/s (OC).
- Onboard M.2 socket 3 for 2242/2260/2280 SSDs
- 5x protection II - advanced hardware safeguards for all-around protection
- DDR4 Memory compatibility
- Fan Xpert 2+ advanced fan controls for ultimate cooling and silent performance
- Epic gaming audio with LED-illuminated shielding
Specifications
| Manufacturer | Asus |
|---|---|
| Model Number | H110M-E/M.2 |
| Launch Date | July 2018 |
| CPU Socket | LGA1151 |
| Chipset Model | Intel H110 |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 2 |
| Maximum RAM Capacity | 32 GB |
| Valid DDR4 Speeds | DDR4-2133 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16, 2 × PCIe x1 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 1 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |

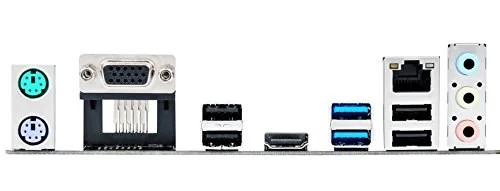

| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 1 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | No |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | H110M-E/M.2 |
| SKU Code | H110M-E/M.2 |
| GTIN / EAN | 889349392249 |
Price History (last 12 months)
Plots available price points within the past 12 months.
