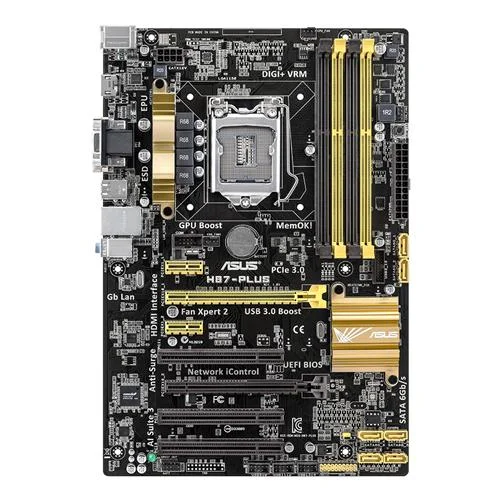

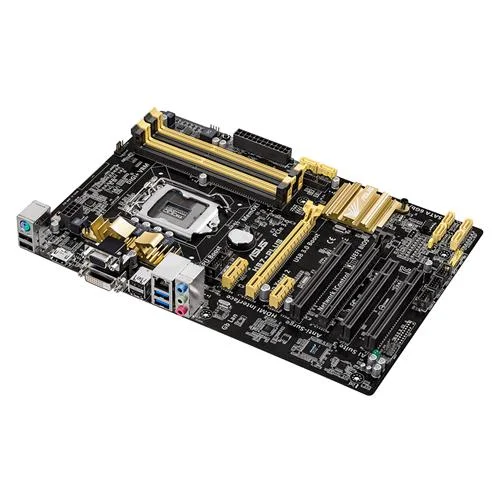

ASUS H87-PLUS LGA1150 ATX DDR3 32 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The ASUS H87-PLUS is a ATX motherboard for LGA1150. It supports DDR3 memory up to 1600 MT/s (OC).
- ASUS 5X Protection - All-round protection provides the best quality, reliability, and durability
- New UEFI BIOS – Friendlier, easier, and more intuitive with helpful info added
- Fan Xpert 2 - Comprehensive controls for the perfect cool and quiet balance
- USB 3.0 Boost (UASP Support) - 170% faster transfer speeds than traditional USB 3.0
- Ai Suite 3 - One-stop access to innovative ASUS features
- Windows 8.1 support
- Needs a case with HD audio module in the front panel to support an 8-channel audio output
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | H87-PLUS |
| Launch Date | October 2013 |
| CPU Socket | LGA1150 |
| Chipset Model | Intel H87 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR3 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 32 GB |
| Valid DDR4 Speeds | DDR4-1066 / DDR4-1333 / DDR4-1600 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 2 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 0 × M.2 |
| M.2 Device Compatibility | |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |

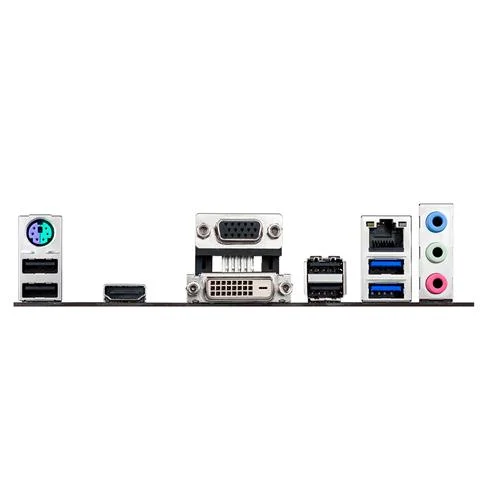

| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 3 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | H87-PLUS |
| SKU Code | H87-PLUS |
| GTIN / EAN | 886227494361 |
