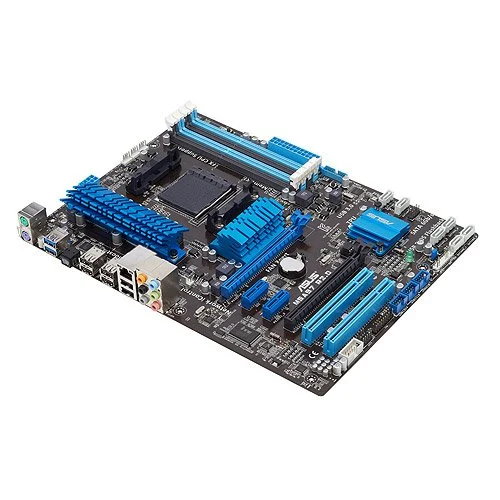

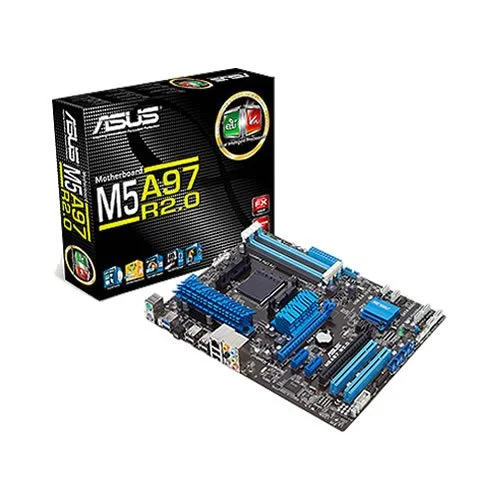

ASUS M5A97 R2.0 AM3+ ATX DDR3 32 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The ASUS M5A97 R2.0 is a ATX motherboard for AM3+. It supports DDR3 memory up to 2133 MT/s (OC).
- ASUS Exclusive Design consists of the EPU (Energy Processing Unit) and the TPU (TurboV Processing Unit), guaranteeing superior performance for every task, bringing users an unbeatable experience
- Network iControl Gives user real-time bandwidth allocation control to insure efficient bandwidth usage
- DirectKey Easy access BIOS when PC is on standby with the push of a button
- Windows 8 Ready Meets strict hardware requirements for Windows 8 support
- Remote GO! One-stop PC Remote Control and Home Entertainment
- UEFI BIOS
- Good overclocking capabilities
- Mediocre audio controller
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | M5A97 R2.0 |
| Launch Date | May 2012 |
| CPU Socket | AM3+ |
| Chipset Model | 970 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR3 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 32 GB |
| Valid DDR4 Speeds | DDR4-1066 / DDR4-1333 / DDR4-1600 / DDR4-1866 / DDR4-2133 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 2 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 0 × M.2 |
| M.2 Device Compatibility | |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |

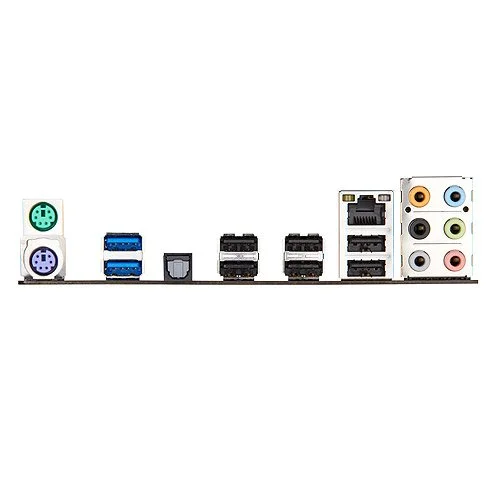

| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 3 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | M5A97 R2.0 |
| SKU Code | M5A97 R2.0 |
| GTIN / EAN | 776587306575 |
