ASUS M5A99FX PRO R2.0 AM3+ ATX DDR3 32 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

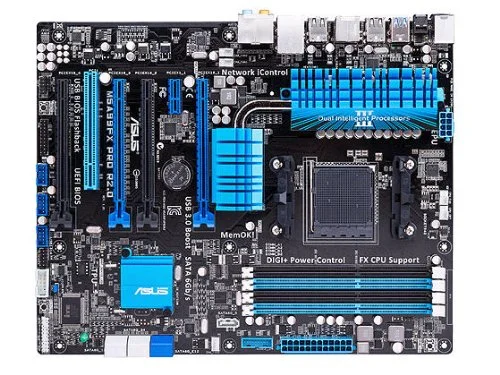

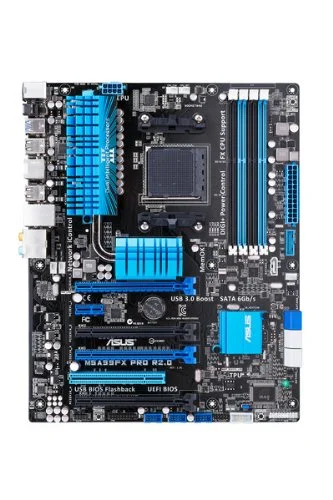

The ASUS M5A99FX PRO R2.0 is a ATX motherboard for AM3+. It supports DDR3 memory up to 2133 MT/s (OC).
- Win8 Support Ready - Upgraded Hardware and Native BIOS Support, with 2 second Fast Boot.
- Dual Intelligent Processors 3 - New DIGI+ Power Control, with DRAM and CPU Power, and SMART DIGI+ Key
- Network iControl - Real-time network bandwidth control application that easily allowing users to prioritize bandwidth to different applications.
- Remote GO!- Simple Solution provides Seamless Wireless Enjoyment, turning the Smart Handhelds into your best home entertainment console.
- USB 3.0 Boost-Set USB 3.0 devices into 3 modes: Normal, Turbo, UASP to improve overall read/write performance instantaneously
- Overclocking features
- Supports NVIDIA Quad-GPU SLI
- Supports AMD Quad-GPU CrossFireX
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | M5A99FX PRO R2.0 M5A99FX-PRO-R2 |
| Launch Date | December 2012 |
| CPU Socket | AM3+ |
| Chipset Model | 990FX |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR3 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 32 GB |
| Valid DDR4 Speeds | DDR4-1066 / DDR4-1333 / DDR4-1600 / DDR4-1866 / DDR4-2133 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 4 × PCIe x16, 1 × PCIe x1 |
| PCIe x16 (Qty) | 4 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 1 |
| M.2 Slot Count | 0 × M.2 |
| M.2 Device Compatibility | |
| SATA III Ports | 7 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |

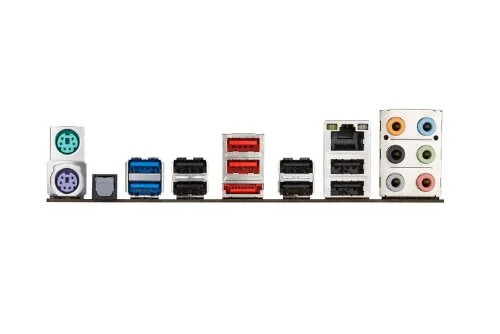

| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 3 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | No |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | M5A99FX PRO R2.0 |
| SKU Code | M5A99FX PRO R2.0 |
| GTIN / EAN | 691111372010 |
Price History (last 12 months)
Plots available price points within the past 12 months.
