ASUS M5A99X Evo AM3+ ATX DDR3 32 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The ASUS M5A99X Evo is a ATX motherboard for AM3+. It supports DDR3 memory up to 2133 MT/s (OC).
- AMD socket AM3+ for AMD FX Series CPU up to 8-core compatible with AMD Socket AM3 Processors
- AMD 990X/SB950 Chipset
- DIGI+ VRM - New Era of Digital Power Design that fully enables Superior System Stability, High Power Efficiency and Improved Performance Scaling
- EPU - System Level Energy Saving & Real-time Power Management for Superb Platform Power Efficiency
- TPU - Increase Platform Performance Instantly with Self Optimized Settings while retaining Full System Stability
- Dual Graphics Support - NVIDIA SLI Ready on AMD 990 Platform for high-performance graphics
- UEFI BIOS - BIOS control via a Graphical Interface with mouse controlled support featuring unparalleled control options
- 2.2TB or higher native HD support, and Quick Boot features
Specifications
| Manufacturer | Asus |
|---|---|
| Model Number | M5A99X Evo |
| Launch Date | |
| CPU Socket | AM3+ |
| Chipset Model | 990X |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR3 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 32 GB |
| Valid DDR4 Speeds | DDR4-1066 / DDR4-1333 / DDR4-1600 / DDR4-1866 / DDR4-2133 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16, 2 × PCIe x1 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 0 × M.2 |
| M.2 Device Compatibility | |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |

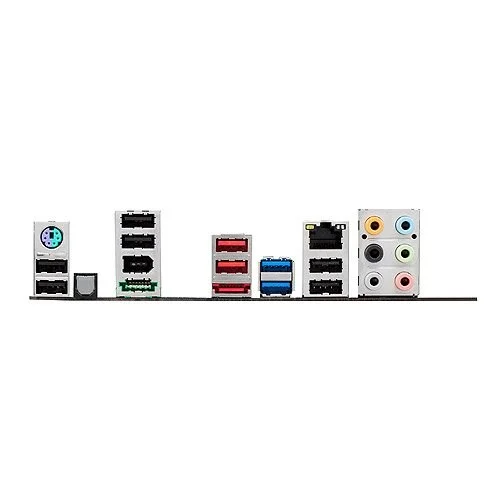

| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 3 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | M5A99X Evo |
| SKU Code | M5A99X Evo |
| GTIN / EAN | 610839181193 |
