ASUS MAXIMUS VIII RANGER LGA1151 ATX DDR4 64 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

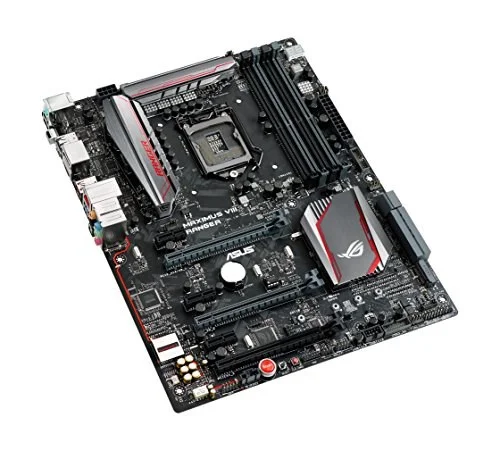

The ASUS MAXIMUS VIII RANGER is a ATX motherboard for LGA1151. It supports DDR4 memory up to 3400 MT/s (OC).
- Highly-affordable ROG ATX Z170 board with epic performance and gaming-oriented design
- LGA1151 socket for 6th-gen Intel Core desktop processors.
- Dual DDR4 3400 (OC) support.
- Best gaming performance – 5-Way Optimization with Auto-Tuning, 2nd-generation T-Topology and OC design
- Best gaming audio – reinvented SupremeFX 2015 with intuitive Sonic Studio II.
- Best gaming networking – best-in-class Intel Gigabit Ethernet, LANGuard and GameFirst technology.
- Best gaming protection – carefully-selected premium components to ensure maximum durability.
- ROG gives you more – more gaming-oriented utilities, all free!
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | MAXIMUS VIII RANGER 90MB0LX0-M0EAY0 |
| Launch Date | August 2015 |
| CPU Socket | LGA1151 |
| Chipset Model | Intel Z170 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-3000 / DDR4-3200 / DDR4-3300 / DDR4-3333 / DDR4-3400 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16, 3 × PCIe x1 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 3 |
| M.2 Slot Count | 1 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 2 × SATA 6Gbps |
| SATA Express Ports | 2 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | MAXIMUS VIII RANGER |
| SKU Code | MAXIMUS VIII RANGER |
| GTIN / EAN | 889349127131 |
