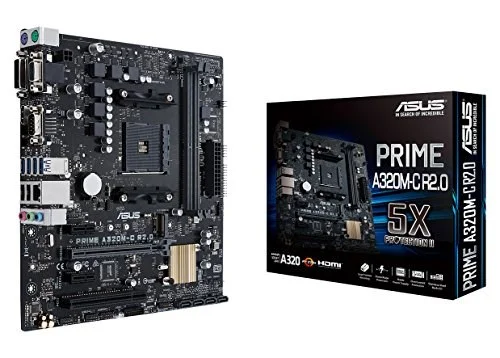

ASUS PRIME A320M-C R2.0 AM4 Micro-ATX DDR4 32 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The ASUS PRIME A320M-C R2.0 is a Micro-ATX motherboard for AM4. It supports DDR4 memory up to 3200 MT/s (OC).

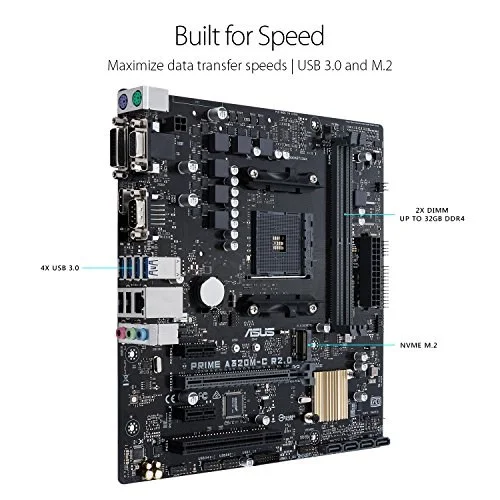

- Powered by AMD Ryzen AM4 and 7th generation Athlon processors to maximize connectivity and speed with support for NVMe M.2, front panel USB 3.0, gigabit LAN, and up to 32GB of DDR4
- 5X Protection II Hardware-level safeguards provide component longevity and reliability

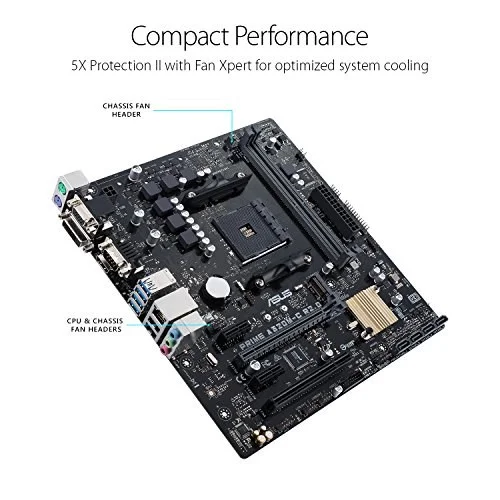

- FanXpert allows for dynamic fan calibration and optimized system cooling
- Integrated AMD Radeon R Series Graphics for onboard HDMI, DVI-D, and VGA support
- On-board 8-Channel HD Audio provides warm, immersive crystal-clear surround sound
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | PRIME A320M-C R2.0 90MB0UE0-M0EAY0 |
| Launch Date | |
| CPU Socket | AMD Socket AM4 |
| Chipset Model | Intel A320 |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 2 |
| Maximum RAM Capacity | 32 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3200 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16, 2 × PCIe x1 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 1 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | GbE LAN |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |

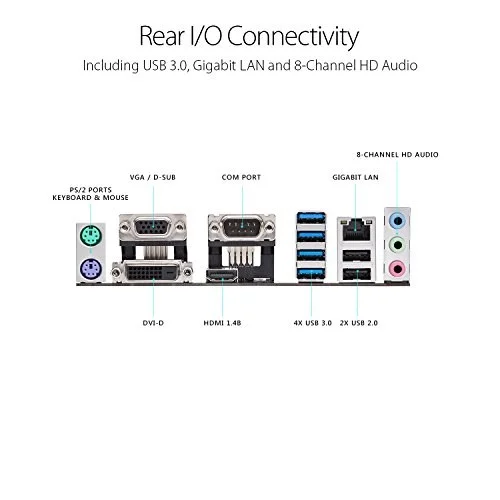

| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | PRIME A320M-C R2.0 |
| SKU Code | PRIME A320M-C R2.0 |
| GTIN / EAN | 889349694954 |
