Asus PRIME A320M-K AM4 Micro-ATX DDR4 32 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The Asus PRIME A320M-K is a Micro-ATX motherboard for AM4. It supports DDR4 memory up to 3200 MT/s (OC).

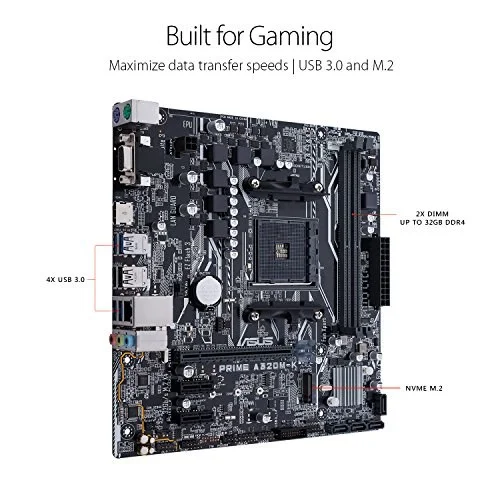

- Powered by AMD RyzenTM AM4, 7th generation AthlonTM and HD 2000 series processors to maximize connectivity and speed with NVMe M.2, support for 32GB of DDR4, USB 3.0 and Gigabit LAN

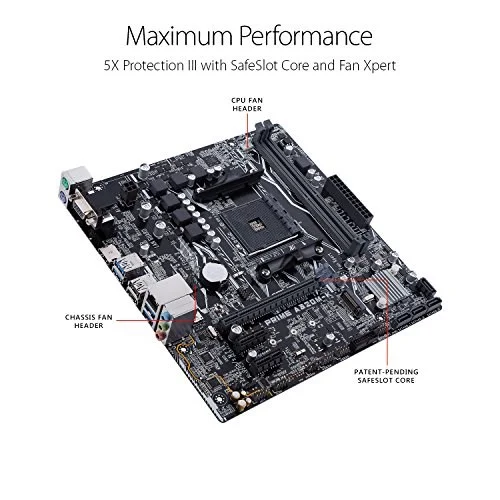

- 5X Protection III Hardware-level safeguards provide component longevity and reliability
- Patent-pending SafeSlot Core fortified PCIe slot prevents damage from heavyweight GPUs
- Fan Xpert delivers advanced fan controls for optimized cooling

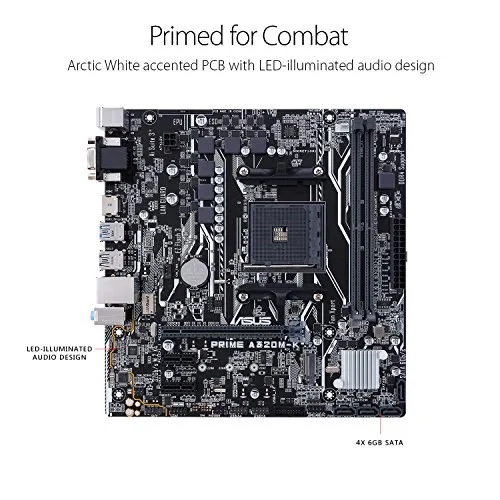

- Industry-leading 8-channel HD audio driven by Japanese capacitors features an onboard LED-illuminated design
Specifications
| Manufacturer | Asus |
|---|---|
| Model Number | PRIME A320M-K 90MB0TV0-M0EAY0 90MB0TV0-M0AAY0 90MB0TV0-MVAAY0 |
| Launch Date | April 2017 |
| CPU Socket | AMD Socket AM4 |
| Chipset Model | Intel A320 |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 2 |
| Maximum RAM Capacity | 32 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3200 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16, 2 × PCIe x1 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 1 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | GbE LAN |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |

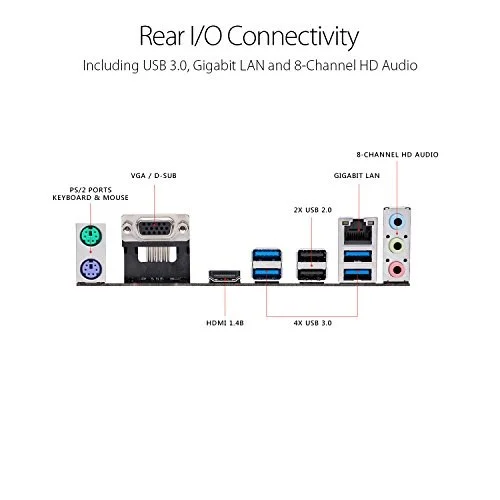

| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | PRIME A320M-K |
| SKU Code | PRIME A320M-K |
| GTIN / EAN | 889349672068 |
