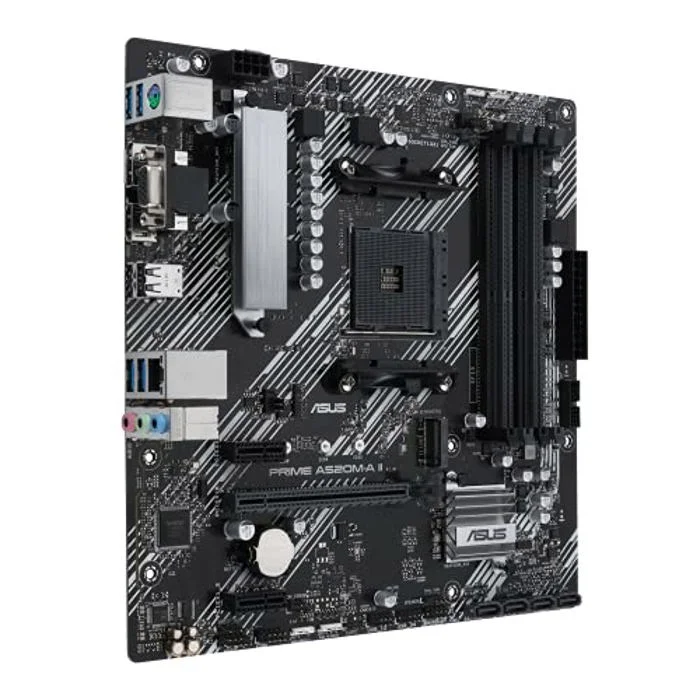

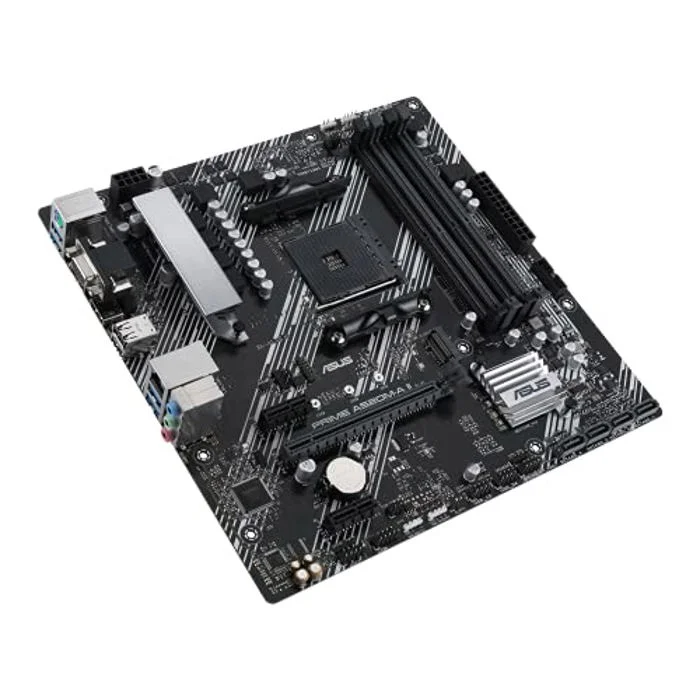

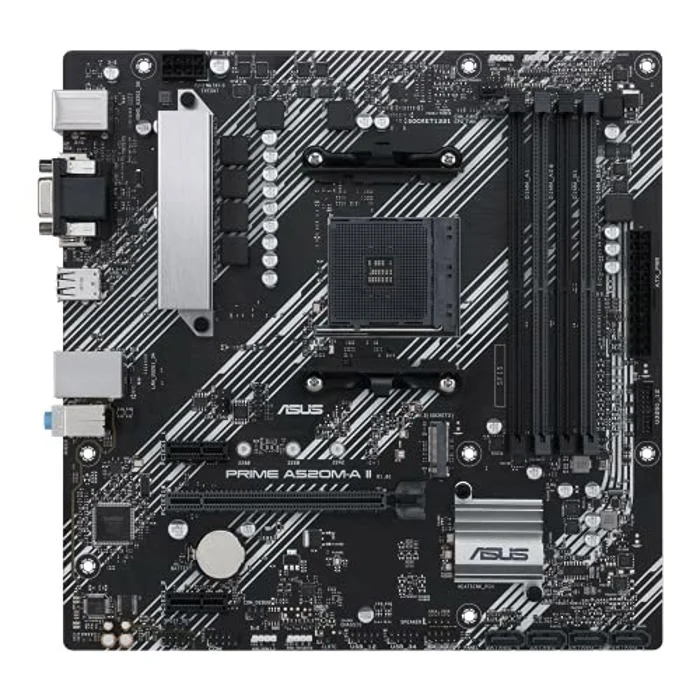

ASUS Prime A520M-A II/CSM AM4 Micro-ATX DDR4 128 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
Free | - |
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The ASUS Prime A520M-A II/CSM is a Micro-ATX motherboard for AM4. It supports DDR4 memory up to 4800 MT/s (OC).
- AMD AM4 Socket: Design for 3rd Gen AMD Ryzen and 3rd Gen AMD Ryzen with Radeon Graphics Processors
- Comprehensive cooling: VRM heatsink, PCH heatsink, and Fan Xpert 2+

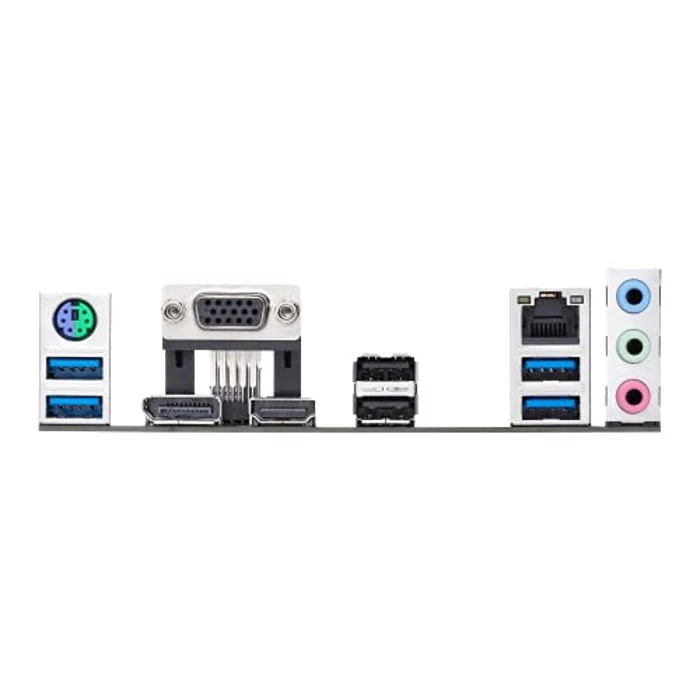

- Fast Connectivity: 32Gbps M.2 slot, 1Gb Ethernet, USB 3.2 Gen 1 Type-A ports, plus HDMI 2.1 4K@60HZ, D-Sub, and DP outputs
- ASUS CSM motherboard: ASUS Corporate Stable Model with up to 36-month supply, EOL notice, and ECN control
- ASUS Control Center Express(ACCE) to make IT endpoint management simpler
- 5X Protection III: all-round protection with LANGuard, DRAM overcurrent protection, overvoltage protection, SafeSlot Core safeguards and stainless-steel back I/O
- Aura Sync : Onboard RGB headers and addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | PRIME A520M-A II/CSM 90MB17H0-M0EAY0 90MB17H0-M0AAYC 90MB17H0-MVAAYC |
| Launch Date | June 2021 |
| CPU Socket | AMD Socket AM4 |
| Chipset Model | Intel A520 |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-3000 / DDR4-3200 / DDR4-3333 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4400 / DDR4-4600 / DDR4-4800 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16, 2 × PCIe x1 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 1 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | PRIME A520M-A II/CSM |
| SKU Code | PRIME A520M-A II/CSM |
| GTIN / EAN | 195553135399 |
