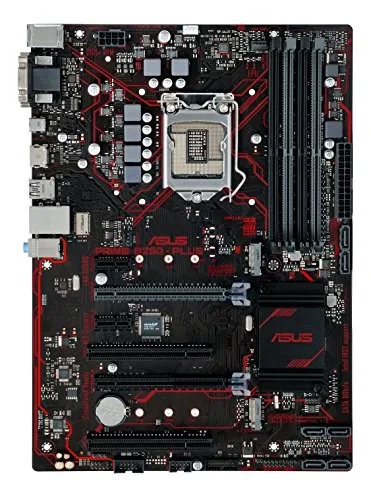

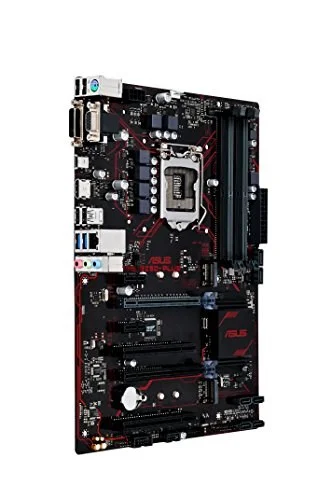

ASUS PRIME B250-PLUS LGA1151 ATX DDR4 64 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The ASUS PRIME B250-PLUS is a ATX motherboard for LGA1151. It supports DDR4 memory up to 2400 MT/s (OC).
- Maximize your connectivity and speed with integrated Dual M.2 slots with Intel Optane Memory compatibility, front panel USB 3.0 and a rear USB 3.1 Type C connection
- 5X Protection III Hardware-level safeguards provide component longevity and reliability
- FanXpert 2 PLUS delivers advanced fan controls for dynamic cooling
- Dual Patent-pending Safe Slot Core fortified PCIe slot prevents damage caused by heavyweight GPUs
- On-board 3D-printing mounts for creating unique designs on your customized build
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | PRIME B250-PLUS |
| Launch Date | |
| CPU Socket | LGA1151 |
| Chipset Model | Intel B250 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 2 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |

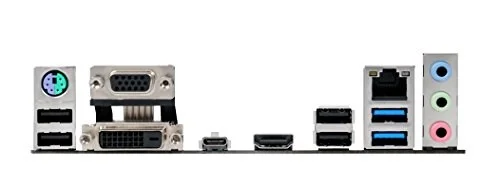

| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 1 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | No |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | PRIME B250-PLUS |
| SKU Code | PRIME B250-PLUS |
| GTIN / EAN | 889349598078 |
