ASUS PRIME B250M-C/CSM LGA1151 Micro-ATX DDR4 64 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

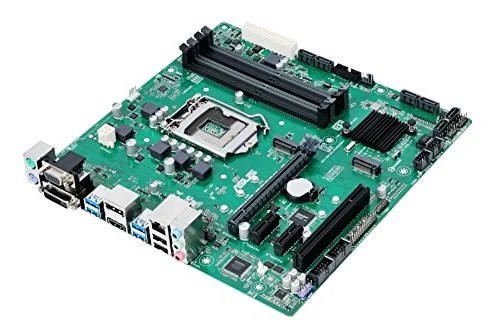

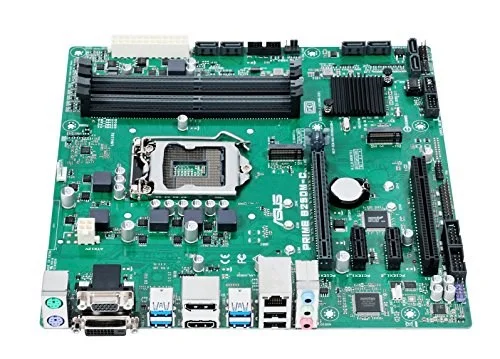

The ASUS PRIME B250M-C/CSM is a Micro-ATX motherboard for LGA1151. It supports DDR4 memory up to 2400 MT/s (OC).
- Maximize your connectivity and speed with integrated Dual M.2 slots with Intel Optane Memory compatibility, front panel USB 3.0.
- 5X Protection III Hardware-level safeguards provide component longevity and reliability
- FanXpert 2 delivers advanced fan control for dynamic cooling
- On-board 8-Channel Audio using premium Japanese capacitors provides warm, immersive crystal-clear surround sound
- Front panel USB 3.0 connectivity for easy access and accelerated data transfers
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | PRIME B250M-C-CSM PRIME B250M-C/CSM |
| Launch Date | September 2018 |
| CPU Socket | LGA1151 |
| Chipset Model | Intel B250 |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16, 2 × PCIe x1 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |

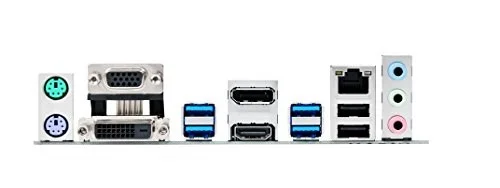

| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | No |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | PRIME B250M-C-CSM |
| SKU Code | PRIME B250M-C-CSM |
| GTIN / EAN | 889349595794 |
Price History (last 12 months)
Plots available price points within the past 12 months.
