ASUS Prime B350-Plus AM4 ATX DDR4 64 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

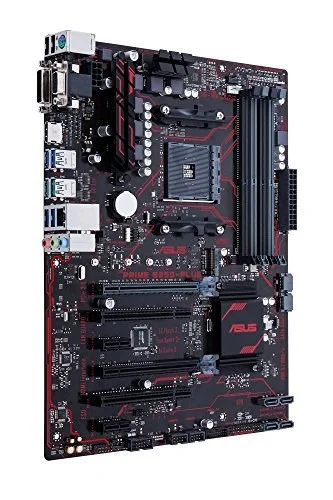

The ASUS Prime B350-Plus is a ATX motherboard for AM4. It supports DDR4 memory up to 2666 MT/s (OC).
- Powered by AMD Ryzen AM4, 7th generation Athlon and HD 2000 series processors to maximize connectivity and speed with NVMe M.2, USB 3.1, DDR4 and Gigabit LAN
- 5X Protection III Hardware-level safeguards provide component longevity and reliability
- Specially designed fan RGB header to support multi-color CPU fan LED strips
- Patent-pending SafeSlot Core fortified PCIe slot prevents damage caused by heavyweight GPUs
- FanXpert 2+ delivers advanced fan controls for optimized cooling. Supports CPU up to 8 cores
Specifications
| Manufacturer | Asus |
|---|---|
| Model Number | PRIME B350-PLUS 90MB0TG0-M0EAY0 |
| Launch Date | March 2017 |
| CPU Socket | AMD Socket AM4 |
| Chipset Model | Intel B350 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 2 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 1 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | GbE LAN |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | PRIME B350-PLUS |
| SKU Code | PRIME B350-PLUS |
| GTIN / EAN | 889349657270 |
