Description

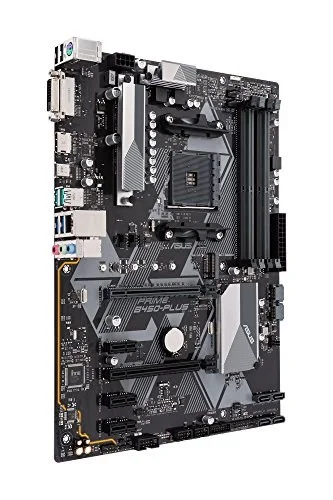

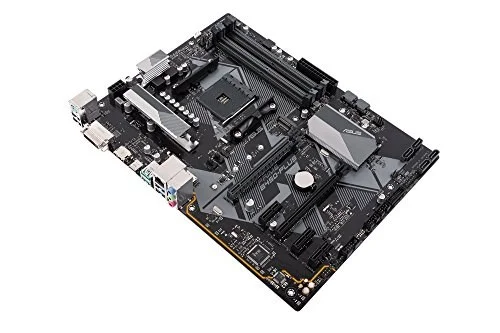

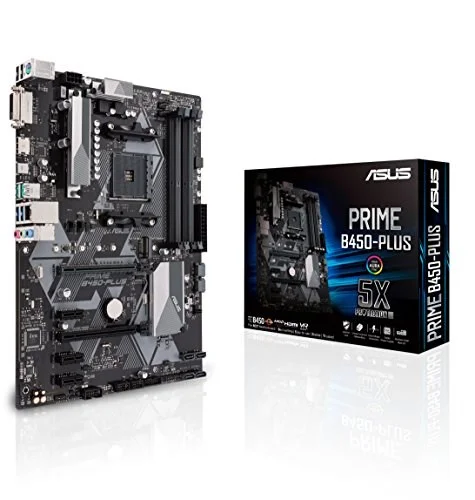

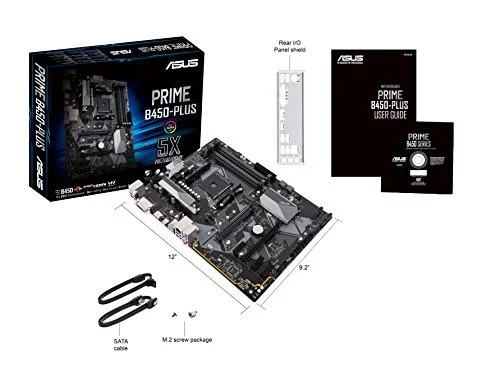

The Asus PRIME B450-PLUS is a ATX motherboard for AM4. It supports DDR4 memory up to 3200 MT/s (OC).
- Powered by 2nd generation AMD Ryzen AM4 to maximize connectivity and speed with NVMe M.2, USB 3.1 Gen2, DDR4 (3200 MHz) and Gigabit LAN
- 5X Protection III hardware-level safeguards provide component longevity and reliability
- Aura Sync RGB header provides a nearly endless spectrum of colors with the ability to synchronize effects across an ever-expanding ecosystem of enabled products
- Patent-pending Safe Slot Core fortified Pie slot prevents damage caused by heavyweight GPUs
- FanXpert 4 Core delivers comprehensive controls for fans and AIO pump, plus GPU-temperature sensing for cooler and optimized gaming
Specifications
| Manufacturer | Asus |
|---|---|
| Model Number | PRIME B450-PLUS 90MB0YN0-M0EAY0 |
| Launch Date | September 2018 |
| CPU Socket | AMD Socket AM4 |
| Chipset Model | Intel B450 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-3000 / DDR4-3200 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 3 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 3 |
| M.2 Slot Count | 1 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | GbE LAN |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |

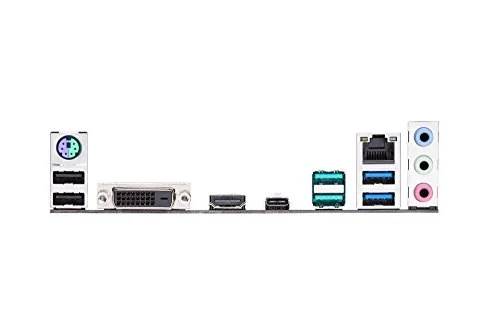

| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | PRIME B450-PLUS |
| SKU Code | PRIME B450-PLUS |
| GTIN / EAN | 192876075678 |
