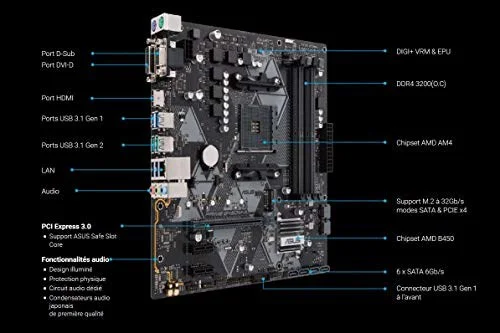

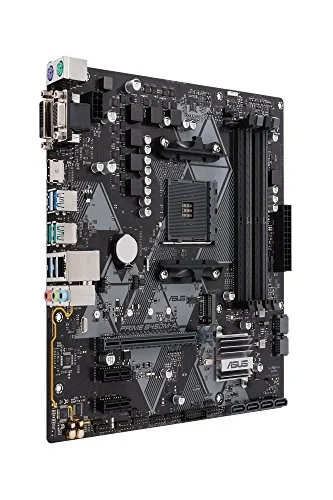

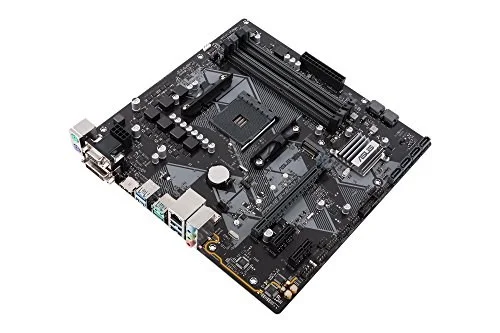

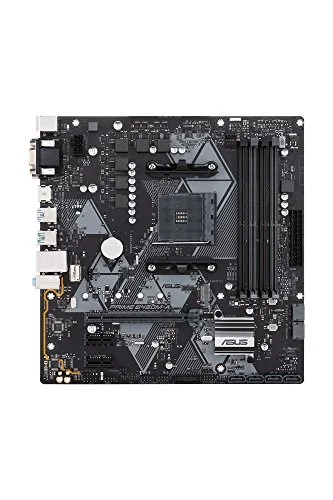

Asus Prime B450M-A AM4 Micro-ATX DDR4 64 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The Asus Prime B450M-A is a Micro-ATX motherboard for AM4. It supports DDR4 memory up to 4400 MT/s (OC).
- Powered By 2Nd Generation AMD Ryzen AM4 Processors To Maximize Connectivity And Speed With Nvme M.2, USB 3.1 Gen2, DDR4 And Gigabit LAN
- DDR4 SDRAM Compatible Slot - Allows The Memory To Operate At An Effective Bus Speed While Using Minimal Power, Resulting In An Optimal Computer Performance And Improved Memory Heat Dissipation
- 5X Protection III Hardware-Level Safeguards Provide Component Longevity And Reliability
- Aura Sync RGB Header Provides A Nearly Endless Spectrum Of Colors With The Ability To Synchronize Effects Across An Ever-Expanding Ecosystem Of Enabled Products
- Micro ATX Form Factor Brings A Significant Number Of PCI Slots, Expansion Slots, And Peripheral Ports With An Enhanced Heat Dissipation Capability
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | PRIME B450M-A 90MB0YR0-M0EAY0 |
| Launch Date | |
| CPU Socket | AMD Socket AM4 |
| Chipset Model | Intel B450 |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-3000 / DDR4-3200 / DDR4-3466 / DDR4-4400 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16, 2 × PCIe x1 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 1 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | GbE LAN |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | PRIME B450M-A |
| SKU Code | PRIME B450M-A |
| GTIN / EAN | 192876075654 |
