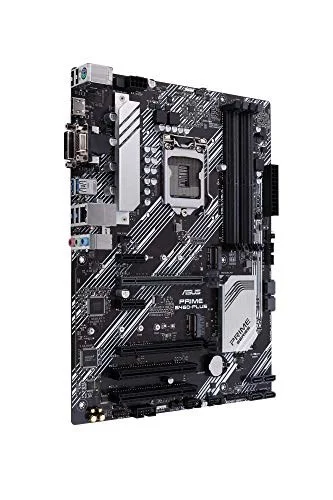

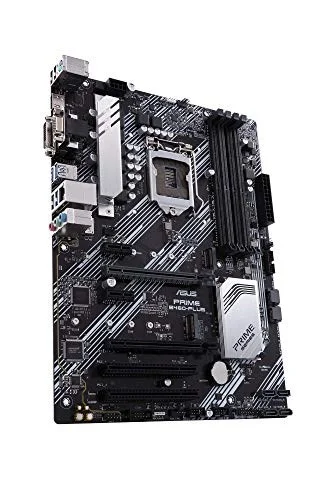

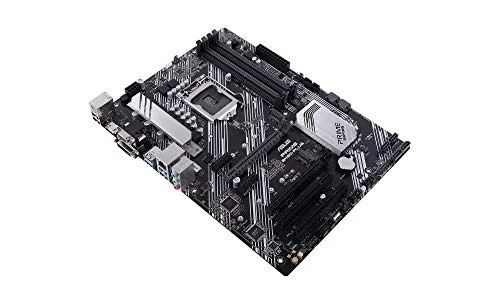

ASUS PRIME B460-PLUS LGA1200 ATX DDR4 128 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
Free | - |
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The ASUS PRIME B460-PLUS is a ATX motherboard for LGA1200. It supports DDR4 memory up to 2933 MT/s (OC).
- Intel LGA 1200 Socket: Designed To Unleash The Maximum Performance Of 10Th Gen Intel Core Processors
- Boosted Memory Performance: ASUS Optimem Proprietary Trace Layout Allows Memory Kits To Operate At Higher Frequencies With Lower Voltages To Maximize System Performance.

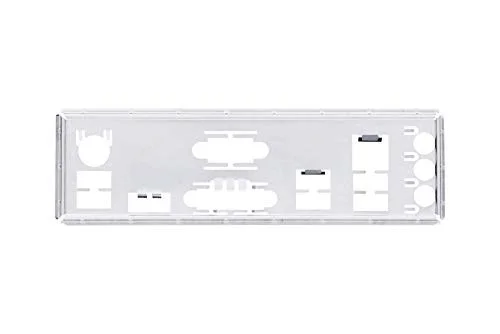

- 5X Protection III: All-Round Protection With Languard, DRAM Overcurrent Protection, Overvoltage Protection, Safeslot Core Safeguards And Stainless-Steel Back I/O
- Enhanced Power Solution: 8 Drmos Power Stages, Procool Connector, Alloy Chokes And Durable Capacitors For Stable Power Delivery In The Most Demanding Situations
- Aura Sync RGB: Synchronizable LED Effects Across A Vast Portfolio Of Compatible PC Gear With RGB Headers
- Comprehensive Cooling: VRM Heatsink, PCH Heatsink, Hybrid Fan Headers And Fan Xpert 2 Utility
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | PRIME B460-PLUS 90MB13N0-M0EAY0 90MB13J0-M0AAY0 |
| Launch Date | May 2020 |
| CPU Socket | LGA1200 |
| Chipset Model | Intel B460 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 2 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |

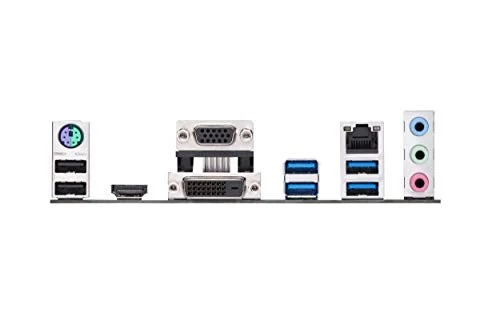

| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | PRIME B460-PLUS |
| SKU Code | PRIME B460-PLUS |
| GTIN / EAN | 192876694329 |
