ASUS PRIME B550M-A/CSM AM4 Micro-ATX DDR4 128 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

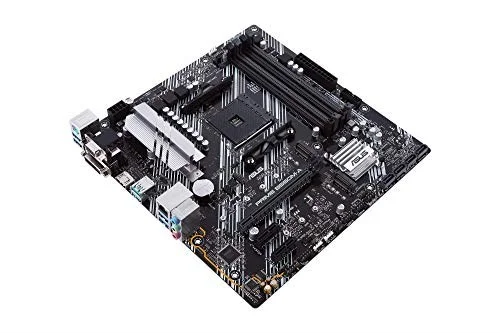

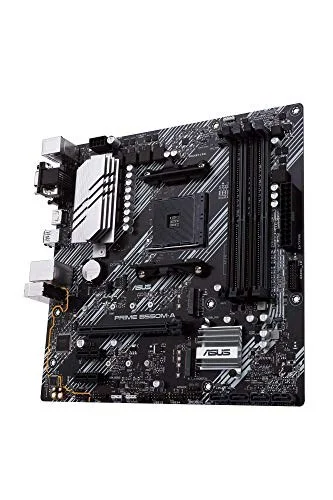

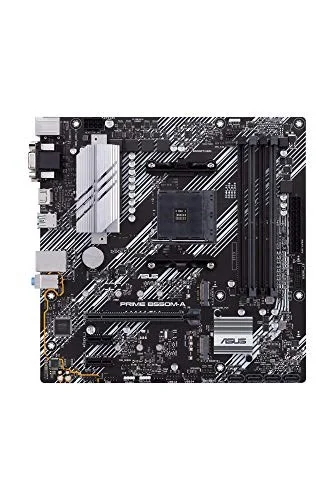

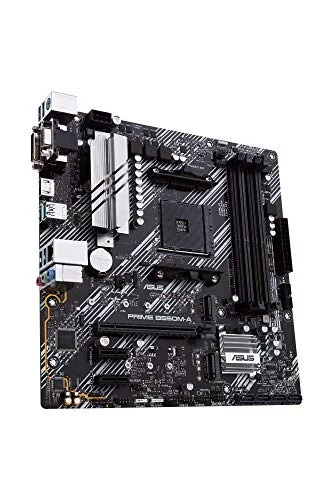

The ASUS PRIME B550M-A/CSM is a Micro-ATX motherboard for AM4. It supports DDR4 memory up to 4600 MT/s (OC).
- AMD AM4 Socket And Pcie 4. 0: The Perfect Pairing For 3Rd Gen AMD Ryzen Cpus

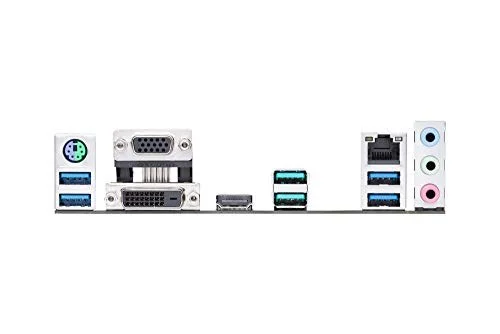

- Fast Connectivity: 1Gb LAN, USB 3. 2 Gen 2 Type-C & Type-A Ports, A Front Panel USB 3. 2 Gen 1 Connector, Plus HDMI 2. 1, D-Sub, And DVI Display Outputs
- First Pcie 4. 0 CSM Motherboard: ASUS Corporate Stable Model With Up To 36-Month Supply, EOL Notice, And ECN Control
- ASUS Control Center Express(ACCE) To Make IT Endpoint Management Simpler
- 5X Protection III: All-Round Protection With Languard, DRAM Overcurrent Protection, Overvoltage Protection, Safeslot Core Safeguards And Stainless-Steel Back I/O
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | PRIME B550M-A/CSM 90MB14I0-M0AAYC |
| Launch Date | June 2020 |
| CPU Socket | AMD Socket AM4 |
| Chipset Model | Intel B550 |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-3000 / DDR4-3200 / DDR4-3333 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4400 / DDR4-4600 (OC) |
| ECC Memory Support | Yes * ECC memory support also depends on the CPU memory controller |
| Expansion Slots (PCIe) | 1 × PCIe x16, 2 × PCIe x1 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | GbE LAN |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | PRIME B550M-A/CSM |
| SKU Code | PRIME B550M-A/CSM |
| GTIN / EAN | 192876755532 |
