ASUS Prime B560-PLUS LGA1200 ATX DDR4 128 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
Free | - |
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

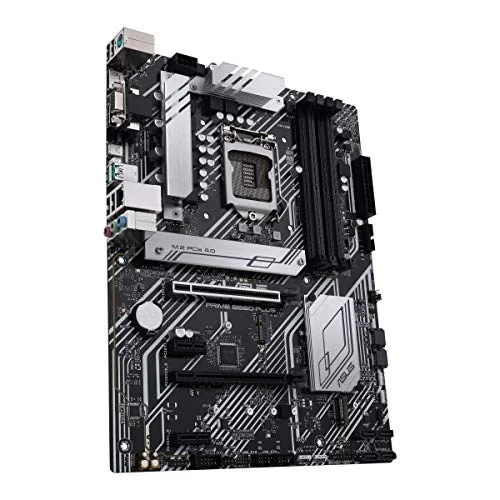

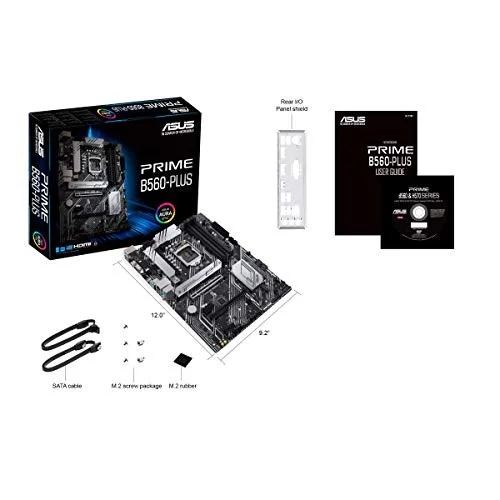

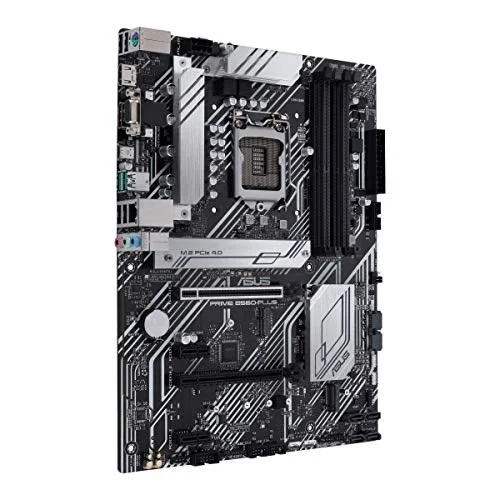

The ASUS Prime B560-PLUS is a ATX motherboard for LGA1200. It supports DDR4 memory up to 4600 MT/s (OC).
- Intel LGA 1200 Socket: Ready For 11Th Gen Intel Core Processors
- Comprehensive Cooling: VRM Heatsink, Flexible M.2 Heatsink, PCH Heatsink, Hybrid Fan Headers And Fan Xpert 2+
- ASUS Optimem: Careful Routing Of Traces And Vias To Preserve Signal Integrity For Improved Memory Stability
- Ultrafast Connectivity: Pcie 4.0, Intel 1 Gb Ethernet, Rear USB 3.1 Gen 2 Type-C And Thunderbolt 4 Header Support
- 5X Protection III: Multiple Hardware Safeguards For All-Round Protection.
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | PRIME B560-PLUS 90MB16N0-M0EAY0 90MB16N0-M0AAY0 90MB16N0-MVAAY0 |
| Launch Date | February 2021 |
| CPU Socket | LGA1200 |
| Chipset Model | Intel B560 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3200 / DDR4-3333 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-4000 / DDR4-4266 / DDR4-4400 / DDR4-4600 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 2 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key (Intel 11th Gen only), 2242 / 2260 / 2280 / 22110 - M Key, 2230 - E Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | No |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | PRIME B560-PLUS |
| SKU Code | PRIME B560-PLUS |
| GTIN / EAN | 195553122696 |
