Asus PRIME B650-PLUS AM5 ATX DDR5 192 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The Asus PRIME B650-PLUS is a ATX motherboard for AM5. It supports DDR5 memory up to 6400 MT/s (OC).

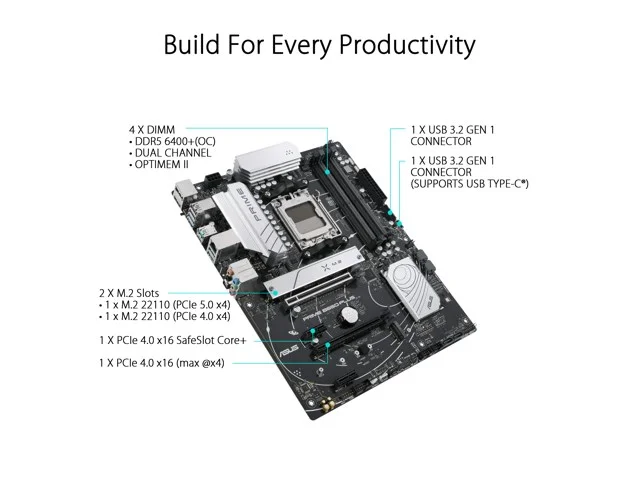

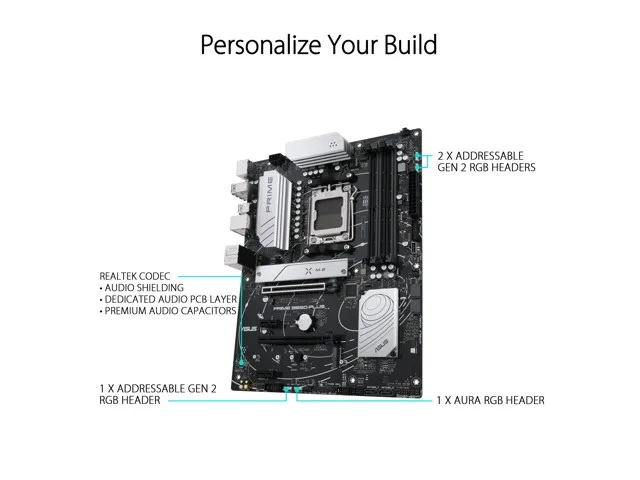

- ASUS Prime B650-PLUS AMD B650(Ryzen 7000) ATX motherboard(DDR5, PCIe 5.0 M.2 support, 2.5Gb Ethernet, DisplayPort, HDMI, USB 3.2 Gen 2 Type-C, front USB 3.2 Gen 1 Type-C, BIOS FlashBack, USB4 support and Arua Sync) Number of Memory Slots: 4x288pin (DDR5) Memory Standard: DDR5 6400+(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200 / 5000 / 4800* * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration. * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function. PCI Express x1: 2 x PCIe 4.0 x1 slots Audio Channels: Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers Max LAN Speed: 2.5Gbps Maximum Memory Supported: 128GB Channel Supported: Dual Channel
Specifications
| Manufacturer | Asus |
|---|---|
| Model Number | PRIME B650-PLUS B650-PLUS 90MB1BS0-M0AAY0 90MB1BS0-MVAAY0 |
| Launch Date | |
| CPU Socket | AM5 |
| Chipset Model | Intel B650 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 192 GB |
| Valid DDR4 Speeds | DDR5-4800 / DDR5-5000 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 2 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key, 2230 - E Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |

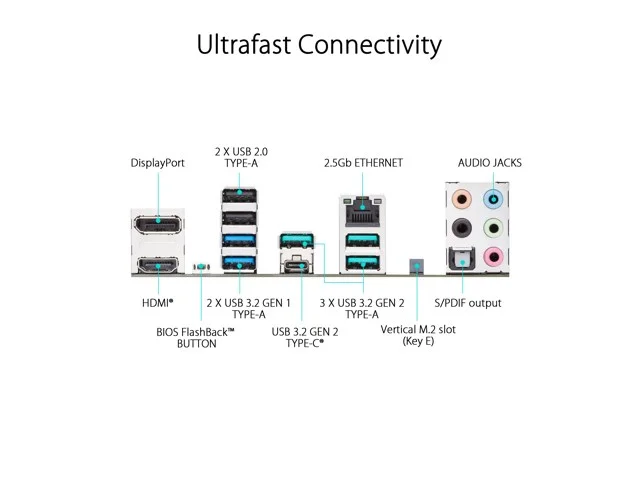

| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | PRIME B650-PLUS |
| SKU Code | PRIME B650-PLUS |
| GTIN / EAN | 195553923385 |
