Asus PRIME B650M-A AX AM5 Micro-ATX DDR5 128 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
£46.02 | - |
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The Asus PRIME B650M-A AX is a Micro-ATX motherboard for AM5. It supports DDR5 memory up to 6400 MT/s (OC).

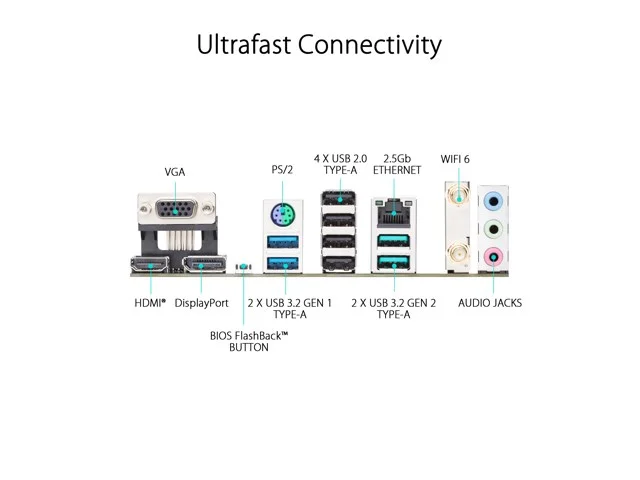

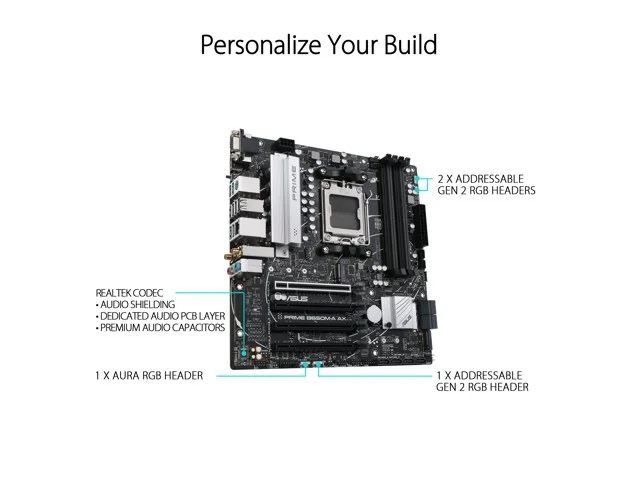

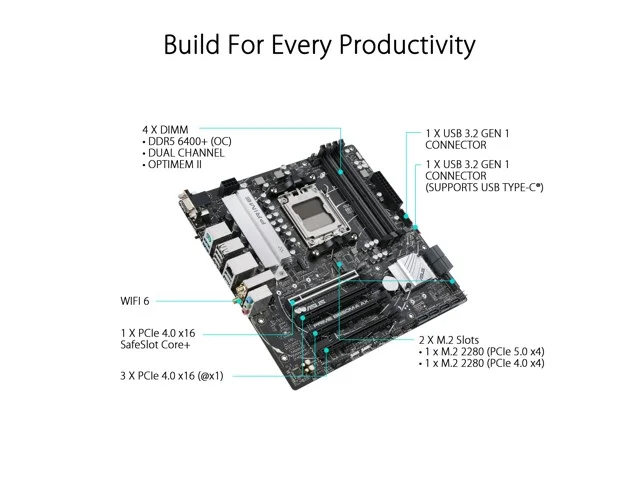

- ASUS Prime B650M-A AX AMD B650(Ryzen 7000) Micro-ATX motherboard(DDR5, PCIe 5.0 M.2 support, 2.5Gb Ethernet, Wi-Fi 6, DisplayPort, HDMI ,USB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C, BIOS FlashBack, CEC Tier II ready) Number of Memory Slots: 4x288pin (DDR5) Memory Standard: DDR5 6400+(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200 / 5000 / 4800 * * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. Audio Channels: Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. Max LAN Speed: 1 x Realtek 2.5Gb Ethernet
Specifications
| Manufacturer | Asus |
|---|---|
| Model Number | PRIME B650M-A AX 90MB1CE0-M0AAY0 |
| Launch Date | |
| CPU Socket | AM5 |
| Chipset Model | Intel B650 |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR5-4800 / DDR5-5000 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 4 × PCIe x16 |
| PCIe x16 (Qty) | 4 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 8 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6 (802.11ax) |
| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | PRIME B650M-A AX |
| SKU Code | PRIME B650M-A AX |
| GTIN / EAN | 195553922616 |
