ASUS Prime B660M-A AC D4 LGA1700 Micro-ATX DDR4 128 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

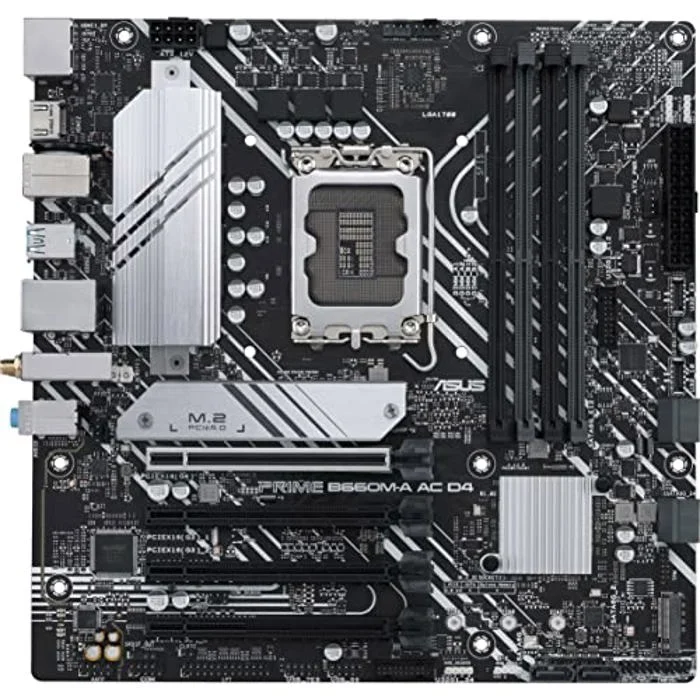

The ASUS Prime B660M-A AC D4 is a Micro-ATX motherboard for LGA1700. It supports DDR4 memory up to 5333 MT/s (OC).
- Intel LGA 1700 socket: Ready for 12th Gen Intel Core, Pentium Gold and Celeron Processors
- Ultrafast connectivity : Intel Wi-Fi 5, PCIe 4.0, Intel 1 Gb Ethernet, rear USB 3.2 Gen 2 Type-A and front USB 3.2 Gen 1 Type-A and Type-C
- ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
- Comprehensive cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- CEC Tier II ready
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | PRIME B660M-A AC D4 90MB19M0-MVAAY0 90MB19M0-M1AAY0 |
| Launch Date | January 2022 |
| CPU Socket | LGA1700 |
| Chipset Model | Intel B660 |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-4000 / DDR4-4266 / DDR4-4400 / DDR4-4600 / DDR4-4800 / DDR4-5000 / DDR4-5333 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 4 × PCIe x16 |
| PCIe x16 (Qty) | 4 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 5 |
| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 2 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | PRIME B660M-A AC D4 |
| SKU Code | PRIME B660M-A AC D4 |
| GTIN / EAN | 195553511919 |
