ASUS PRIME B760M-A LGA1700 Micro-ATX DDR5 128 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
$29.99 | - |
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

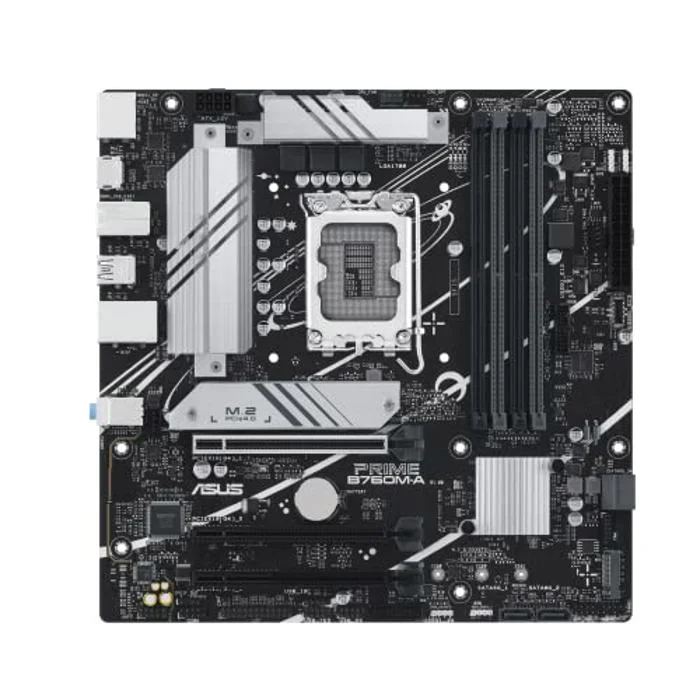

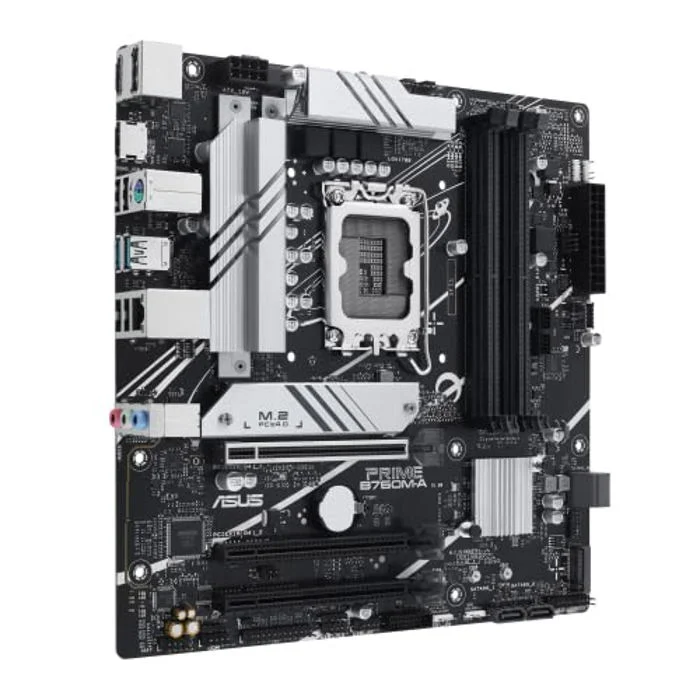

The ASUS PRIME B760M-A is a Micro-ATX motherboard for LGA1700. It supports DDR5 memory up to 7200 MT/s (OC).
- Intel LGA 1700 Socket: Ready for 13th and 12th Gen Intel processors
- Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C
- Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | PRIME B760M-A 90MB1EK0-M0AAY0 90MB1EK0-M1AAY0 |
| Launch Date | May 2023 |
| CPU Socket | LGA1700 |
| Chipset Model | Intel B760 |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR5-4800 / DDR5-5000 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 / DDR5-6800 / DDR5-7000 / DDR5-7200 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |

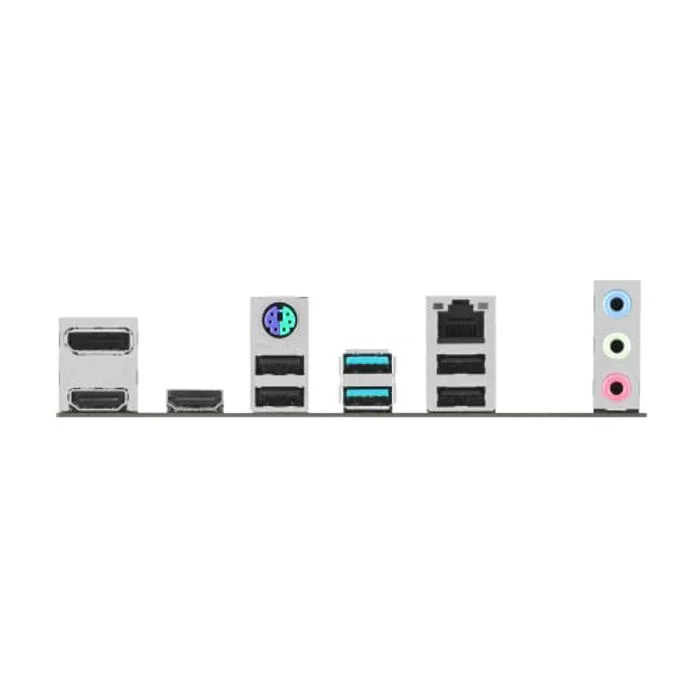

| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | PRIME B760M-A |
| SKU Code | PRIME B760M-A |
| GTIN / EAN | 197105140684 |
Price History (last 12 months)
Plots available price points within the past 12 months.
