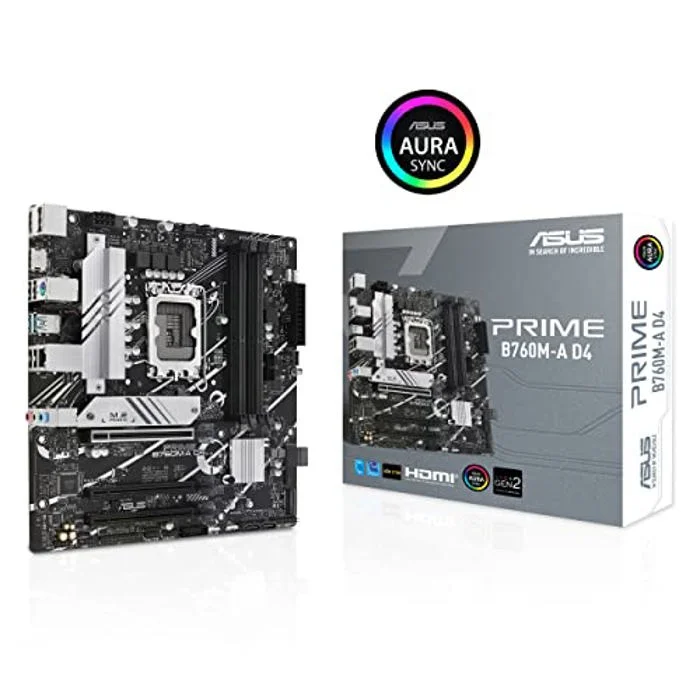

Asus PRIME B760M-A D4 LGA1700 Micro-ATX DDR4 128 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

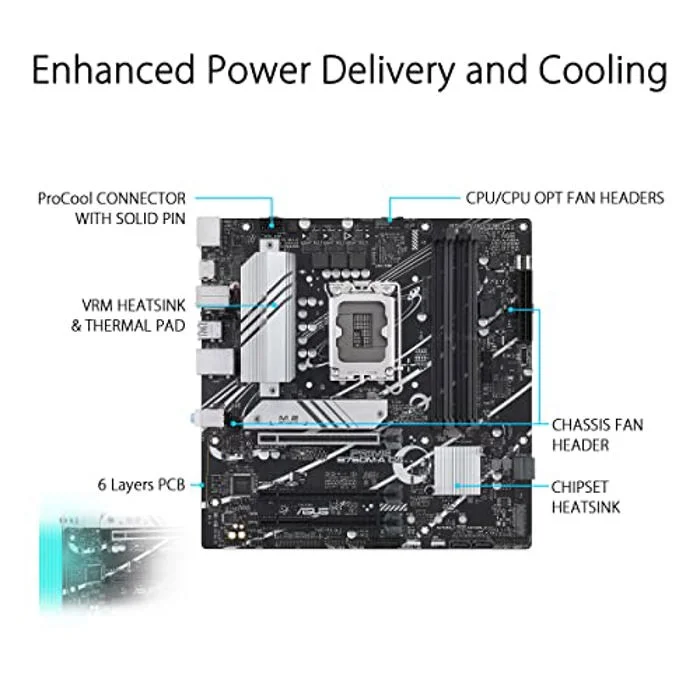

The Asus PRIME B760M-A D4 is a Micro-ATX motherboard for LGA1700. It supports DDR4 memory up to 5333 MT/s (OC).

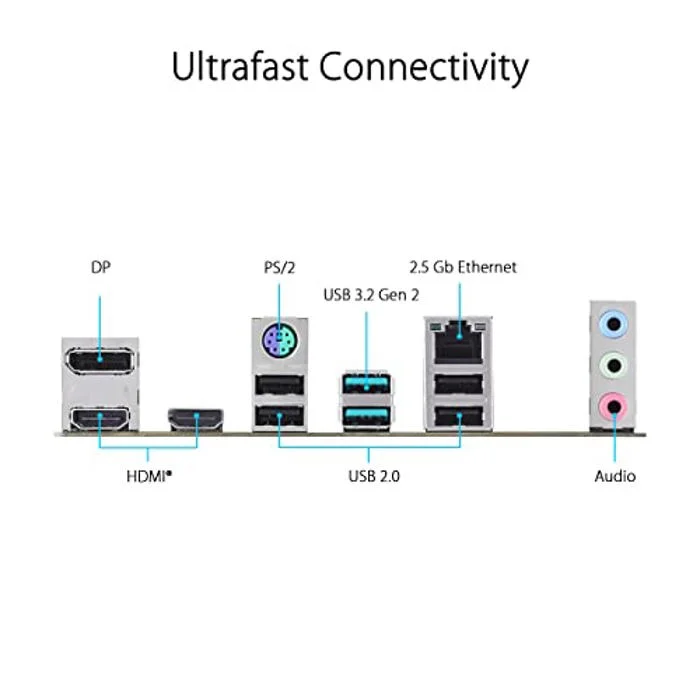

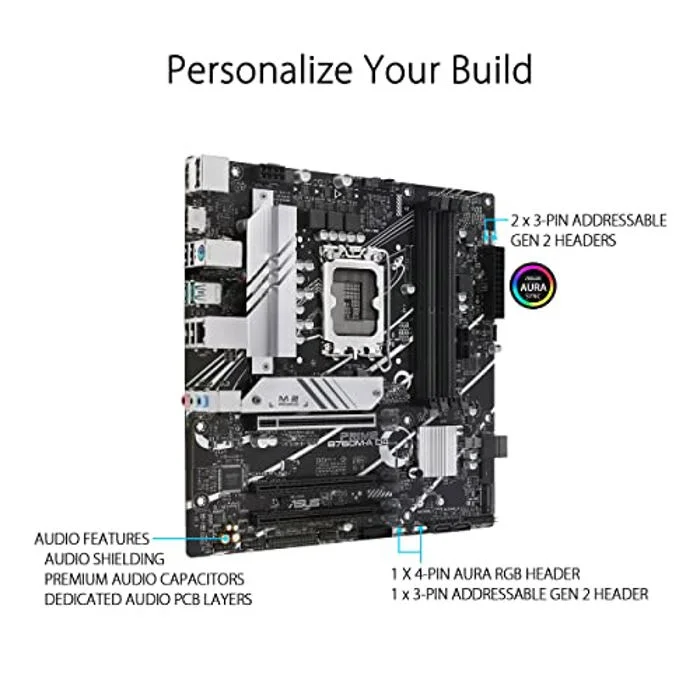

- ASUS PRIME B760M-A D4 Intel B760 (LGA 1700)(13th and 12th Gen) mATX motherboard, PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, DisplayPort, Dual HDMI, SATA 6 Gbps, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C, Aura Sync Memory Standard: DDR4 3200 Number of Memory Slots: 4x288pin (DDR4) Audio Chipset: Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. PCI Express 4.0 x16: Intel 13th & 12th Gen Processors 1 x PCIe 4.0 x16 slot Intel B760 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x16 slot (supports x1 mode) Max LAN Speed: 2.5Gbps CPU Type: Celeron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Pentium Gold Maximum Memory Supported: 128GB
Specifications
| Manufacturer | Asus |
|---|---|
| Model Number | PRIME B760M-A D4 90MB1D00-M0AAY0 |
| Launch Date | |
| CPU Socket | LGA1700 |
| Chipset Model | Intel B760 |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-4000 / DDR4-4266 / DDR4-4400 / DDR4-4600 / DDR4-4800 / DDR4-5000 / DDR4-5066 / DDR4-5333 (OC) |
| ECC Memory Support | No |

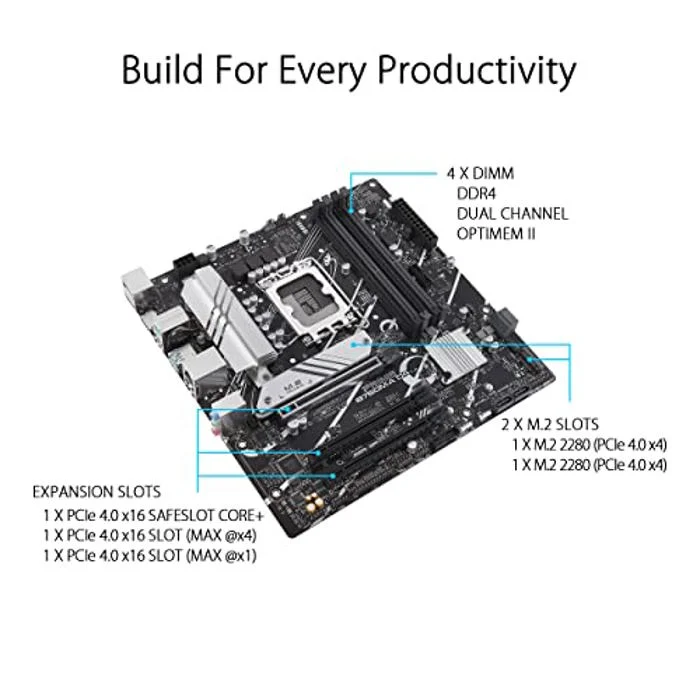

| Expansion Slots (PCIe) | 3 × PCIe x16 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | PRIME B760M-A D4 |
| SKU Code | PRIME B760M-A D4 |
| GTIN / EAN | 195553984034 |
