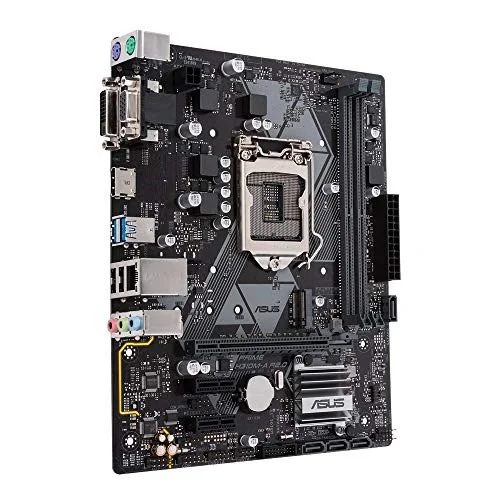

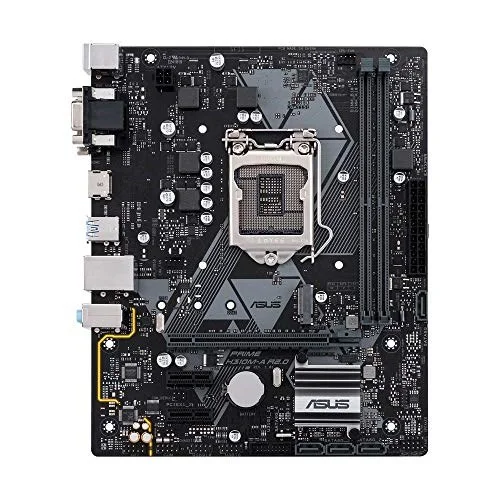

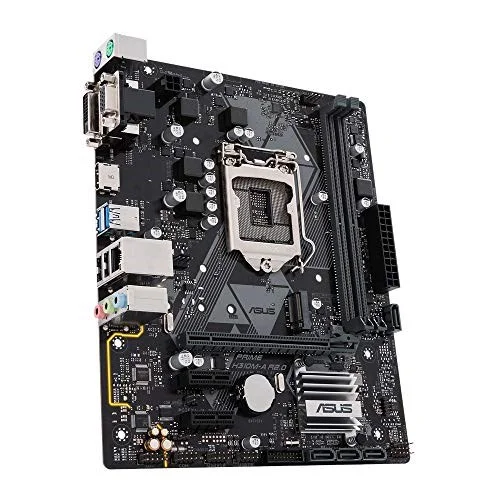

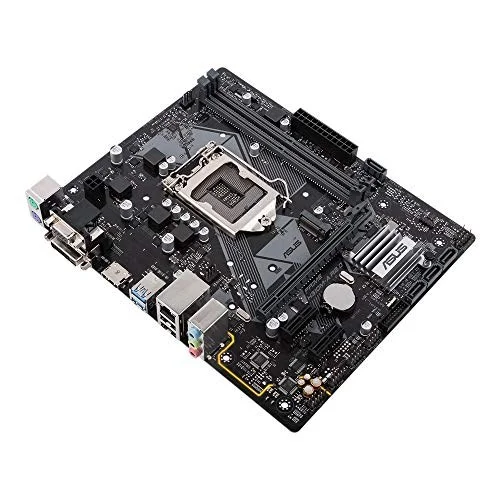

ASUS PRIME H310M-A R2.0 LGA1151 Micro-ATX DDR4 32 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The ASUS PRIME H310M-A R2.0 is a Micro-ATX motherboard for LGA1151. It supports DDR4 memory up to 2666 MT/s (OC).
- 32GB Dual DDR4-SDRAM
- Micro ATX Form Factor
- Ports: 1 X PS/2 Keyboard/Mouse, 1 X DVI-D, 1 X D-Sub, 1 X HDMI, 1 X LAN (RJ45), 2 X USB3.1 Gen1, 2 X USB2.0,3 X Audio Jacks
- Chipset: Intel H310
- Backed By 3 Years Manufacturers Warranty
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | PRIME H310M-A R2.0 |
| Launch Date | |
| CPU Socket | LGA1151 |
| Chipset Model | Intel H310 |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 2 |
| Maximum RAM Capacity | 32 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16, 2 × PCIe x1 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 1 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | No |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | PRIME H310M-A R2.0 |
| SKU Code | PRIME H310M-A R2.0 |
| GTIN / EAN | 4718017030625 |
