ASUS PRIME H610I-PLUS D4-CSM LGA1700 Mini-ITX DDR4 64 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

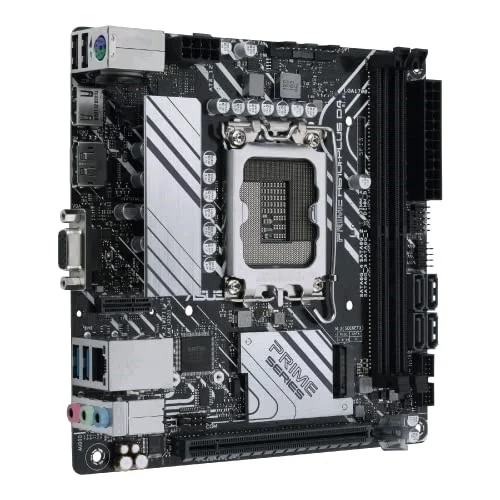

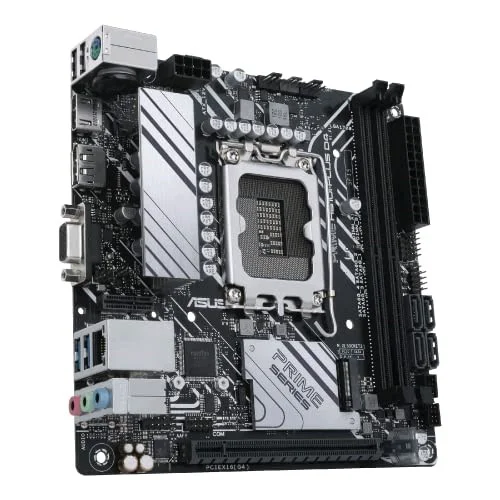

The ASUS PRIME H610I-PLUS D4-CSM is a Mini-ITX motherboard for LGA1700. It supports DDR4 memory up to 3200 MT/s (OC).
- Intel LGA 1700 socket: Ready for 12th Gen Intel processors
- Comprehensive cooling: VRM heatsink, PCH heatsink and Fan Xpert
- Ultrafast connectivity: PCIe 4.0, DDR4, 32Gbps M.2 slot, Realtek 1 Gb Ethernet, USB 3.2 Gen 1 and V-M.2 Key E slot for Wi-Fi
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | PRIME H610I-PLUS D4-CSM 90MB1B20-M2AAYC |
| Launch Date | April 2022 |
| CPU Socket | LGA1700 |
| Chipset Model | Intel H610 |
| Board Size / Form Factor | Mini-ITX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 2 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2260 / 2280 - M Key, E-key - E Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |

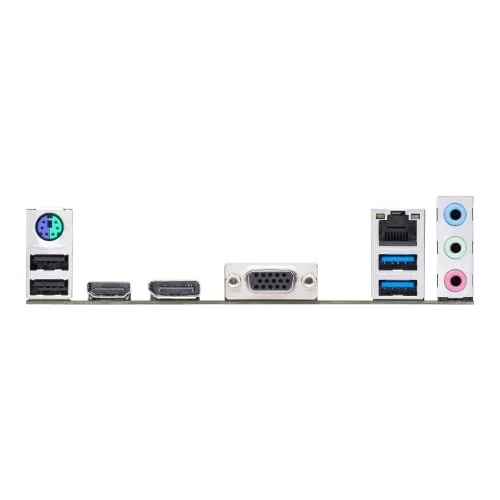

| Rear-Panel USB | USB 3.2 Gen1 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 0 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | No |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | PRIME H610I-PLUS D4-CSM |
| SKU Code | PRIME H610I-PLUS D4-CSM |
| GTIN / EAN | 195553755757 |
