Asus PRIME H670-PLUS D4-CSM LGA1700 ATX DDR4 128 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The Asus PRIME H670-PLUS D4-CSM is a ATX motherboard for LGA1700. It supports DDR4 memory up to 5000 MT/s (OC).
- Ready For 12Th Gen Intel Processors

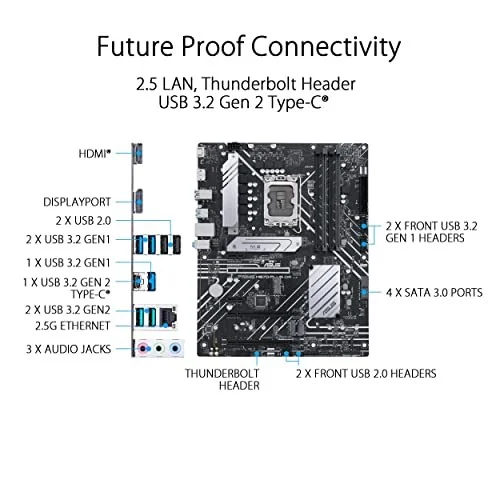

- Pcie 4.0 Slots, Three M.2 Slots, Realtek 2.5Gb Ethernet And Thunderbolt 4 Header Support

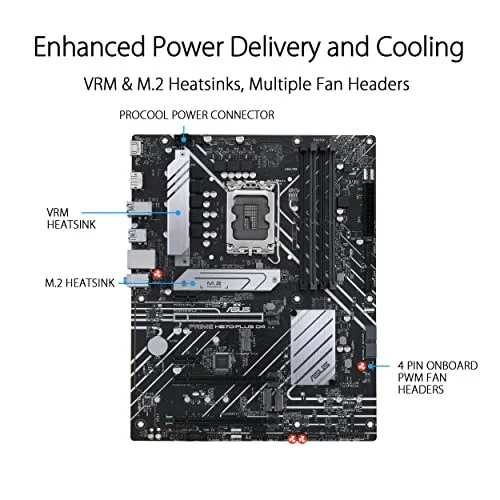

- VRM Heatsink, M.2 Heatsink, PCH Heatsink, Hybrid Fan Headers And Fan Xpert 2+
- Careful Routing Of Traces And Vias To Preserve Signal Integrity For Improved Memory Stability
- A Commercial Program Designed To Provide Stable And Reliable Motherboards
Specifications
| Manufacturer | Asus |
|---|---|
| Model Number | PRIME H670-PLUS D4-CSM |
| Launch Date | |
| CPU Socket | LGA1700 |
| Chipset Model | Intel H670 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-4000 / DDR4-4266 / DDR4-4400 / DDR4-4600 / DDR4-4800 / DDR4-5000 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16, 2 × PCIe x1 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 4 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key, 2230 - E Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 1 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | PRIME H670-PLUS D4-CSM |
| SKU Code | PRIME H670-PLUS D4-CSM |
| GTIN / EAN | 4711081511731 |
