ASUS PRIME TRX40-PRO sTRX4 ATX DDR4 256 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
Free | - |
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The ASUS PRIME TRX40-PRO is a ATX motherboard for sTRX4. It supports DDR4 memory up to 4666 MT/s (OC).
- Amd Socket Strx4: Ready For The Latest 3Rd Gen AMD Ryzen Threadripper Series Processors

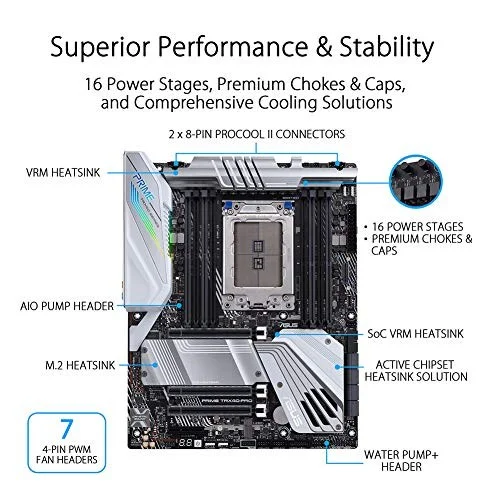

- Robust Power Design: 16 Infineon Tda21462 Power Stages, Procool II Connectors With Solid Pins, And Premium Chokes And Capacitors For Stable Power Delivery
- Comprehensive Thermal Solutions: VRM Heatsink, M.2 Heatsink, Soc VRM Heatsink, Active Chipset Heatsink Solution, And An Array Of Hybrid Fan Headers

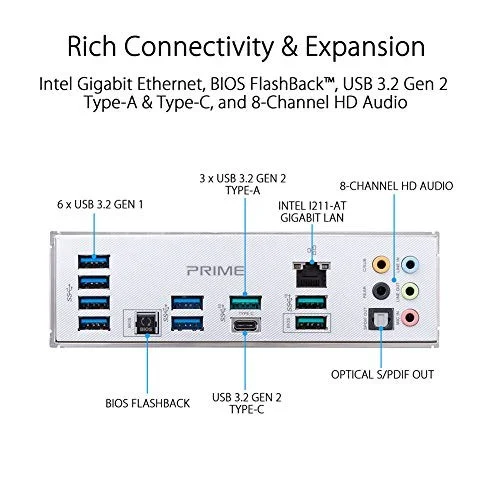

- Next-Gen Connectivity: Three Pcie 4.0 Nvme M.2 Slots, USB 3.2 Gen 2 Type-C Front-Panel Connector, And Intel Gigabit Ethernet

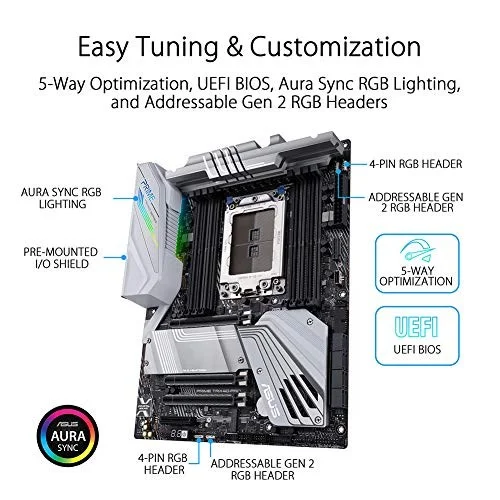

- Intelligent Tuning: Asus 5-Way Optimization Software And Renowned UEFI BIOS Offer Easy Configuration Options For All Experience Levels
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | PRIME TRX40-PRO |
| Launch Date | November 2019 |
| CPU Socket | sTRX4 |
| Chipset Model | TRX40 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 8 |
| Maximum RAM Capacity | 256 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3200 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3800 / DDR4-4133 / DDR4-4266 / DDR4-4333 / DDR4-4400 / DDR4-4600 / DDR4-4666 (OC) |
| ECC Memory Support | Yes * ECC memory support also depends on the CPU memory controller |
| Expansion Slots (PCIe) | 3 × PCIe x16, 1 × PCIe x4 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 1 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 4 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key, 2230 - E Key |
| SATA III Ports | 8 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | PRIME TRX40-PRO |
| SKU Code | PRIME TRX40-PRO |
| GTIN / EAN | 192876535127 |
