ASUS PRIME X299-DELUXE II LGA2066 ATX DDR4 128 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

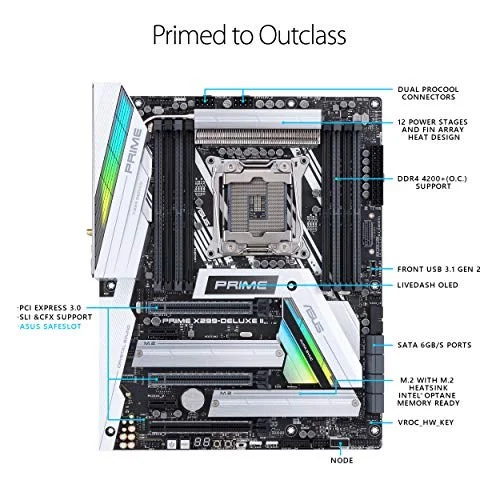

The ASUS PRIME X299-DELUXE II is a ATX motherboard for LGA2066. It supports DDR4 memory up to 4266 MT/s (OC).

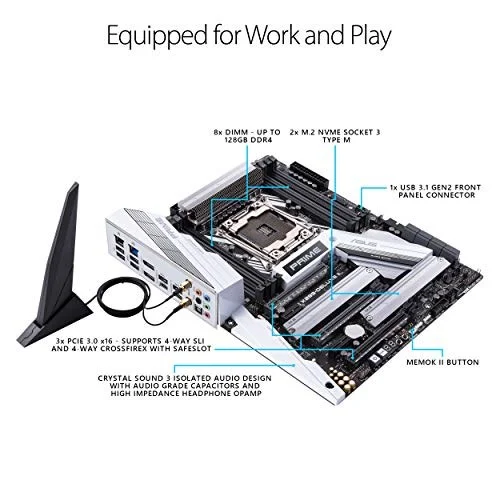

- LGA2066 Socket Intel Core X-Series Processors Triple M.2, Front Panel USB 3.1 Gen2, Onboard 802.11AC Wi-Fi And 5G LAN, Intel VROC And Intel Optane Memory Compatibility
- 5-Way Optimization With Auto-Tuning And Fanxpert4 Automatically Tailors Overclocking Profiles To Your Unique Build For Maximum OC Performance And Dynamic System Cooling
- Patent-Pending Safe Slot Features An Injection Molding Process That Integrates Metal Framing For A Stronger, Firmly Anchored Pcie Slot Built For Heavyweight GPU

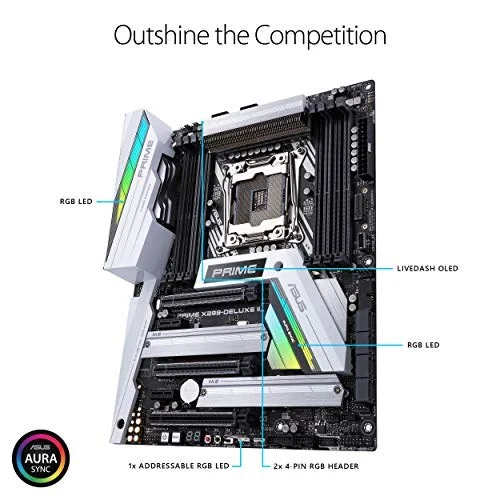

- Unmatched Personalization With ASUS Exclusive AURA Sync RGB Lighting And Livedash OLED TO Give You The Option To Display System Stats Or Custom Graphics
- Pre-Mounted IO Shield Reduces Installation Time And Increases Contact With Ports For Improved Connectivity
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | PRIME X299-DELUXE II 90MB0ZB0-M0AAY0 |
| Launch Date | October 2018 |
| CPU Socket | LGA2066 |
| Chipset Model | Intel X299 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 8 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-3600 / DDR4-4000 / DDR4-4200 / DDR4-4266 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16, 2 × PCIe x1 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 8 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 5 |

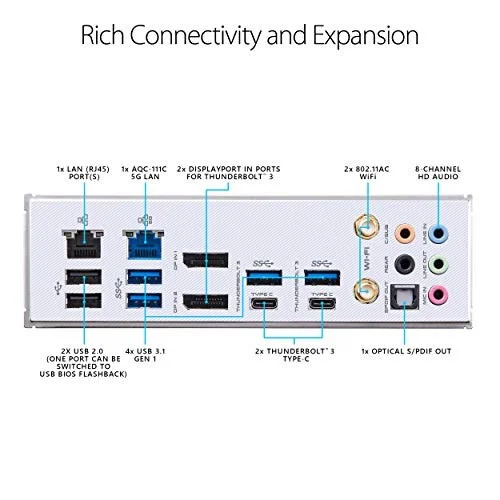

| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 1 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | PRIME X299-DELUXE II |
| SKU Code | PRIME X299-DELUXE II |
| GTIN / EAN | 192876174630 |
