Asus Prime X299 Edition 30 LGA2066 ATX DDR4 256 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The Asus Prime X299 Edition 30 is a ATX motherboard for LGA2066. It supports DDR4 memory up to 4266 MT/s (OC).
- Intel X299 LGA 2066 Socket: Ready For The Latest Intel Core X-Series Processors To Maximize Connectivity And Speed With Up To Three M.2 Drives, USB 3.2 Gen 2, Thunderbolt 3, Intel VROC And Intel Optane Memory Compatibility
- Robust Power & Cooling Solution: 16 IR3555 Power Stages, Procool II Connectors, Alloy Chokes And 10K Japanese-Made Capacitors For Stable Power Delivery, Skived-Fin Heatsink, Active Heatsink, M.2 Heatsinks, 2Oz-Pcb Design And Back Plates.
- High-Performance Networking: Onboard Wi-Fi 6 (802.11Ax) With MU-MIMO Support, Aquantia 5 Gaps Ethernet And Intel Gigabit Ethernet

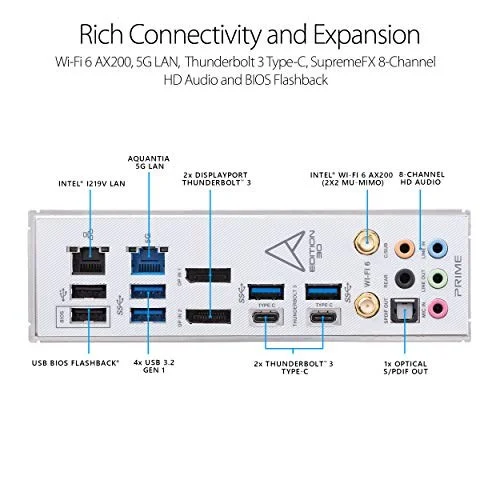

- Next Gen Connectivity: Features Two Type-C Thunderbolt 3 With Displayport 1.4, Three M.2, Front 1X USB 3.2 Gen 2 Connector, 4X USB 3.1 Gen 2 Connectors And Multi- GPU Support.

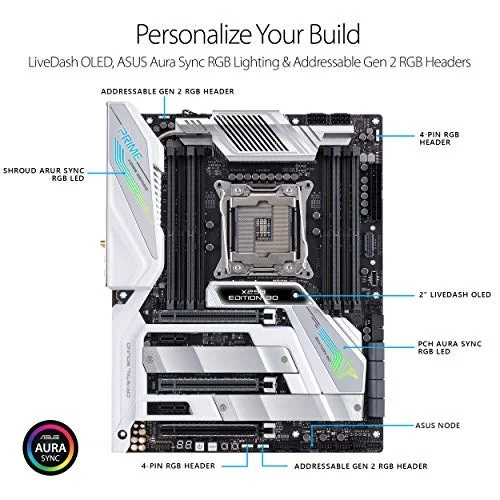

- Unmatched Personalization: Livedash OLED And Exclusive AURA Sync RGB Lighting, Including RGB Headers And Addressable Gen 2 RGB Headers
- Industry Leading Audio: High Fidelity Audio With Crystal Sound 3, DTS Sound Unbound For Pristine, Powerful Audio
- Diy Friendly: Pre-Mounted I/O Shield, Flexkey, Asus Safe Slot, Asus Node Connector And BIOS Flashback For A Friendlier Building Experience
- Ai Overclocking: Quickly Optimizes Your CPU Performance Based On The CPU And Cooler, Achieving Results That Are Extremely Close To Manual Tuning By Experts
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | Prime X299 Edition 30 X299 Edition 30 90MB1190-M0EAY0 |
| Launch Date | September 2019 |
| CPU Socket | LGA2066 |
| Chipset Model | Intel X299 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 8 |
| Maximum RAM Capacity | 256 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3333 / DDR4-3400 / DDR4-3600 / DDR4-3800 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16, 2 × PCIe x1 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 8 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6 (802.11ax) |
| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 1 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | Prime X299 Edition 30 |
| SKU Code | Prime X299 Edition 30 |
| GTIN / EAN | 192876488577 |
