ASUS PRIME X370-PRO AM4 ATX DDR4 64 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

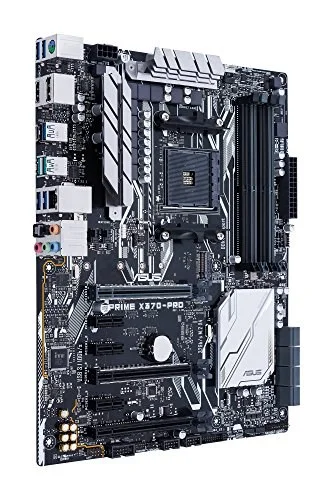

The ASUS PRIME X370-PRO is a ATX motherboard for AM4. It supports DDR4 memory up to 3200 MT/s (OC).
- AMD AM4 ATX motherboard with Aura Sync, DDR4 3200MHz, 32Gb/s M.2, DP/HDMI, SATA 6Gb/s, USB 3.1
- 5-Way Optimization: One-click system-wide tuning that now also senses GPU temperatures to ensure cooler gaming
- ASUS Aura Sync – World’s first synced RGB lighting with easy controls to orchestrate Aura Sync-capable hardware
- Refined Audio: Realtek ALC1220 codec provides pristine and powerful audio quality
- ASUS SafeSlot: Patent-pending PCIe with enhanced retention and shearing resistance
- 5X Protection III: Multiple hardware safeguards to protect components from damage by power or electrical surges
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | PRIME X370-PRO 90MB0TD0-M0EAY0 |
| Launch Date | March 2017 |
| CPU Socket | AMD Socket AM4 |
| Chipset Model | Intel X370 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3200 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16, 3 × PCIe x1 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 3 |
| M.2 Slot Count | 1 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 8 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | PRIME X370-PRO |
| SKU Code | PRIME X370-PRO |
| GTIN / EAN | 889349665367 |
Price History (last 12 months)
Plots available price points within the past 12 months.
