ASUS PRIME X570-PRO AM4 ATX DDR4 128 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
Free | - |
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The ASUS PRIME X570-PRO is a ATX motherboard for AM4. It supports DDR4 memory up to 4400 MT/s (OC).

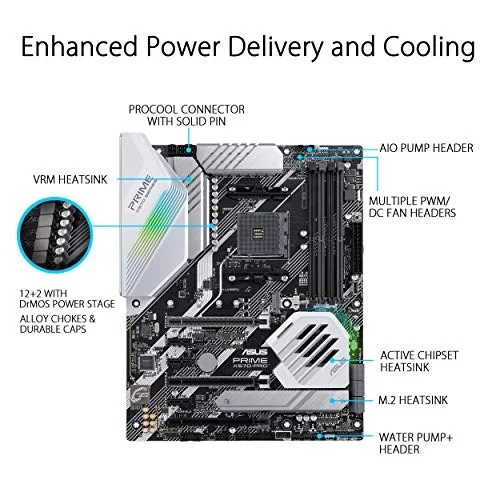

- Enhanced power solution: premium components provide better power efficiency
- 5-Way Optimization: one-click, system-wide tuning delivers optimized overclocks and intelligent cooling for CPU or gpu-intensive tasks
- Industry-leading cooling options: comprehensive controls for fans and dual pump headers, via fan Xpert 4 or the acclaimed UEFI
- ASUS Optic-MEM: careful routing of traces and vias TO preserve signal integrity for improved Memory overclocking

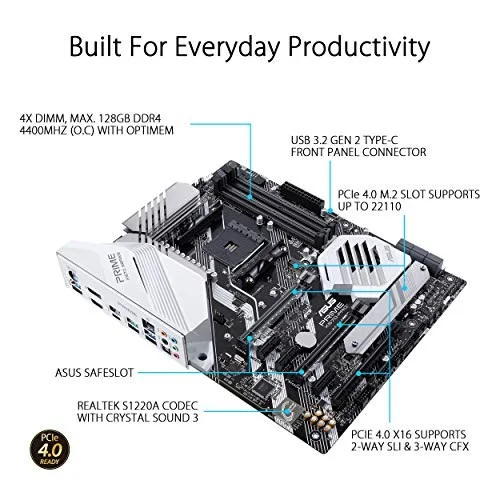

- Next-gen connectivity: supreme flexibility With PCIe Gen 4 support, Dual M. 2 support, USB 3. 2 Gen 2 ports and front-panel header
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | PRIME X570-PRO 90MB11B0-M0AAY0 90MB11B0-MVAAY0 |
| Launch Date | July 2019 |
| CPU Socket | AMD Socket AM4 |
| Chipset Model | Intel X570 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4400 (OC) |
| ECC Memory Support | Yes * ECC memory support also depends on the CPU memory controller |
| Expansion Slots (PCIe) | 3 × PCIe x16, 3 × PCIe x1 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 3 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |

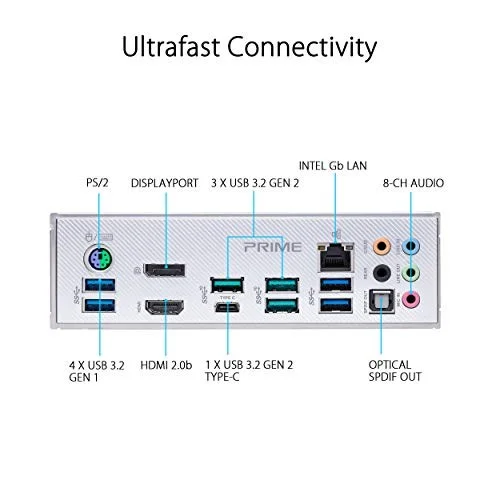

| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | PRIME X570-PRO |
| SKU Code | PRIME X570-PRO |
| GTIN / EAN | 192876254011 |
Price History (last 12 months)
Plots available price points within the past 12 months.
