Asus PRIME X670-P AM5 ATX DDR5 192 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
£45.15 | - |
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The Asus PRIME X670-P is a ATX motherboard for AM5. It supports DDR5 memory up to 6400 MT/s (OC).

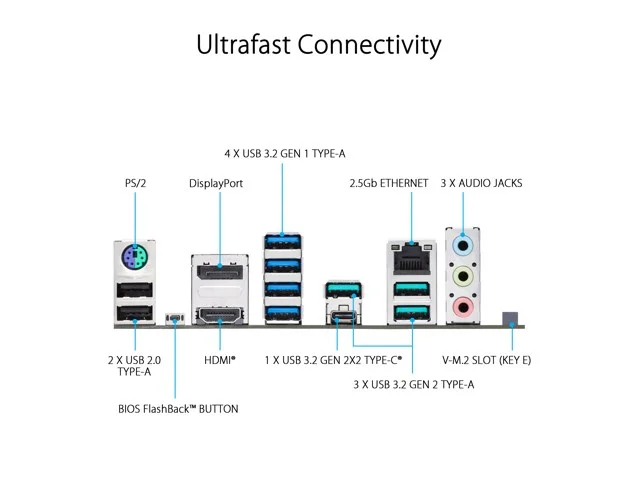

- AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors ChipsetAMD X670Memory4 x DIMM, Max. 128GB, DDR5 5600MHz up to 6400MHz(OC) Supports AMD EXTended Profiles for Overclocking (EXPO)Onboard Graphics Outputs1 x DisplayPort1 x HDMI port PCI Slots AMD Ryzen 7000 Series Desktop Processors: 1 x PCIe 4.0 x16 slot (supports x16 mode) AMD X670 Chipset: 2 x PCIe 4.0 x16 slots (support x4 mode) 1 x PCIe 3.0 x1 slot Storage Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports AMD Ryzen 7000 Series Desktop Processors: M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) AMD X670 Chipset: M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Networking1 x Realtek 2.5Gb EthernetAudioRealtek 7.1 Surround Sound High Definition Audio CODECConnectivity 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 3 x USB 3.2 Gen 2 ports (3 x Type-A) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x V-M.2 slot (Key E) 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack button 1 x PS/2 Keyboard/Mouse combo port Internal Ports Fan and Cooling related: 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related : 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related: 3 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB: 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous: 3 x Addressable Gen 2 headers 2 x Aura RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-5 pin System Panel header 1 x Thunderbolt header Form FactorATX Form Factor - 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Specifications
| Manufacturer | Asus |
|---|---|
| Model Number | PRIME X670-P 90MB1BU0-M0AAY0 |
| Launch Date | |
| CPU Socket | AM5 |
| Chipset Model | Intel X670 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 192 GB |
| Valid DDR4 Speeds | DDR5-4800 / DDR5-5000 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16, 1 × PCIe x1 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 1 |
| M.2 Slot Count | 4 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key, 2230 - E Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | PRIME X670-P |
| SKU Code | PRIME X670-P |
| GTIN / EAN | 195553892810 |
