Asus PRIME Z270M-PLUS LGA1151 Micro-ATX DDR4 64 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

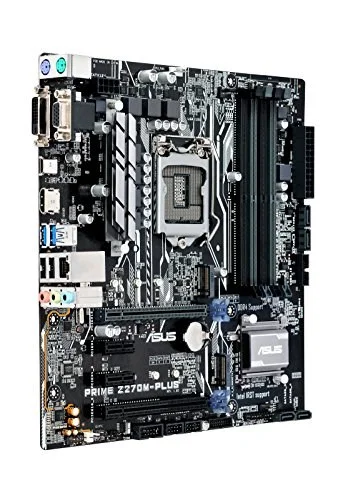

The Asus PRIME Z270M-PLUS is a Micro-ATX motherboard for LGA1151. It supports DDR4 memory up to 3866 MT/s (OC).
- Maximize your connectivity and speed with integrated Dual M.2 slots, Intel Optane Memory compatibility and a rear USB 3.1 Type C connection
- 5X Protection III Hardware-level safeguards provide component longevity and reliability
- FanXpert 4 Core delivers advanced fan control for dynamic cooling
- Dual Patent-pending Safe Slot Core fortified PCIe slot prevents damage caused by heavyweight GPUs
- On-board 3D-printing mounts for creating unique designs on your customized build. Please Note: Kindly refer the User Manual before use.
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | PRIME Z270M-PLUS 90MB0S50-M0EAY0 |
| Launch Date | |
| CPU Socket | LGA1151 |
| Chipset Model | Intel Z270 |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-3000 / DDR4-3200 / DDR4-3300 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 2 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | PRIME Z270M-PLUS |
| SKU Code | PRIME Z270M-PLUS |
| GTIN / EAN | 889349574225 |
