Asus Prime Z390-A LGA1151 ATX DDR4 64 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

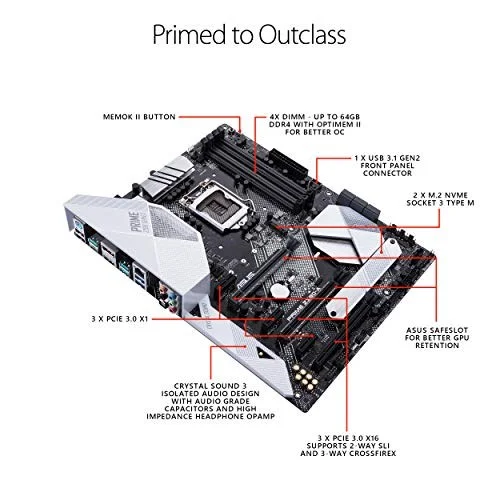

The Asus Prime Z390-A is a ATX motherboard for LGA1151. It supports DDR4 memory up to 4266 MT/s (OC).
- Designed for 9th and 8th generation Intel Core processors to maximize connectivity and speed with M.2, USB 3.1 Gen2 and ASUS Optimum II for better DRAM overclocking stability
- Revamped 5-Way Optimization that has the intelligence to overclock a CPU based on smart prediction and thermal telemetry
- 5X Protection III Hardware-level safeguards with Safe Slot Core, LAN Guard, Over voltage Protection provide longevity, reliability. FanXpert 4 delivers advanced fan control for dynamic system cooling
- Patent-pending Safe Slot Core fortified PCIe slots prevent damage caused by heavyweight GPUs
- 8-channel HD Gaming Audio featuring Realtek ALC887 high definition audio codec
Specifications
| Manufacturer | Asus |
|---|---|
| Model Number | Prime Z390-A 90MB0YT0-M0AAY0 |
| Launch Date | October 2018 |
| CPU Socket | LGA1151 |
| Chipset Model | Intel Z390 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-3000 / DDR4-3200 / DDR4-3300 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16, 3 × PCIe x1 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 3 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |

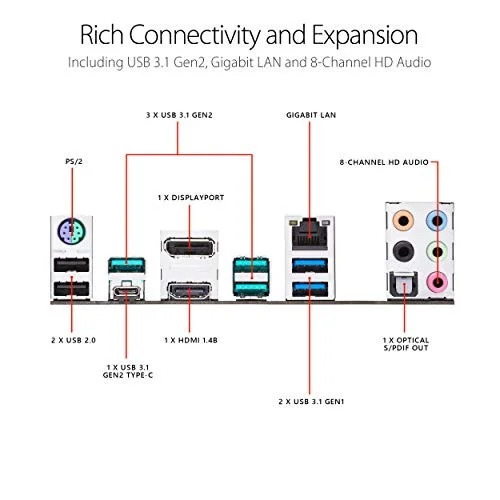

| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 3 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | Prime Z390-A |
| SKU Code | Prime Z390-A |
| GTIN / EAN | 192876129692 |
