ASUS PRIME Z490-A LGA1200 ATX DDR4 128 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The ASUS PRIME Z490-A is a ATX motherboard for LGA1200. It supports DDR4 memory up to 4800 MT/s (OC).
- Intel LGA 1200 Socket: Designed To Unleash The Maximum Performance Of 10Th Gen Intel Core Processors

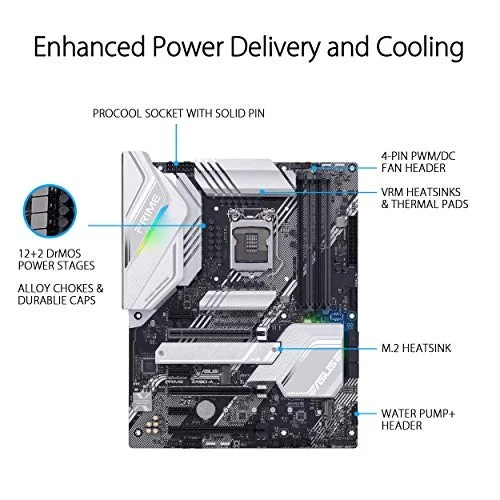

- Enhanced Power Solution: 12+2 Drmos Power Stages, 6-Layer PCB, Procool Sockets, Alloy Chokes And Durable Capacitors For Stable Power Delivery
- Comprehensive Cooling: VRM Heatsink, PCH Heatsink, Hybrid Fan Headers And Fan Xpert 4 Utility
- Boosted Memory Performance: Careful Routing Of Traces And Vias, Plus Ground Layer Optimizations To Preserve Signal Integrity For Improved Memory Overclocking With ASUS Optimem II

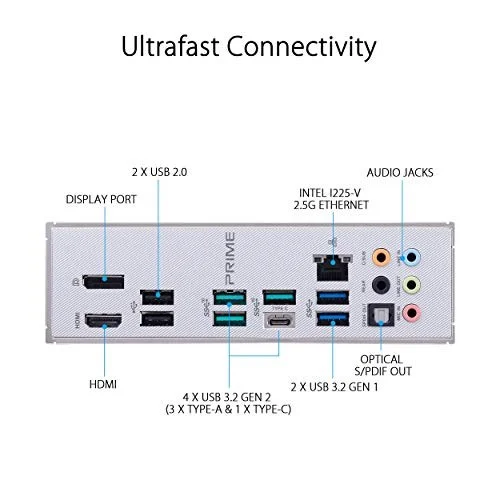

- Built For Productivity : Intel 2.5 Gb Ethernet, Front USB 3.2 Gen 2 Type-C And Thunderbolt 3 Header Support, Dual M.2 Slots

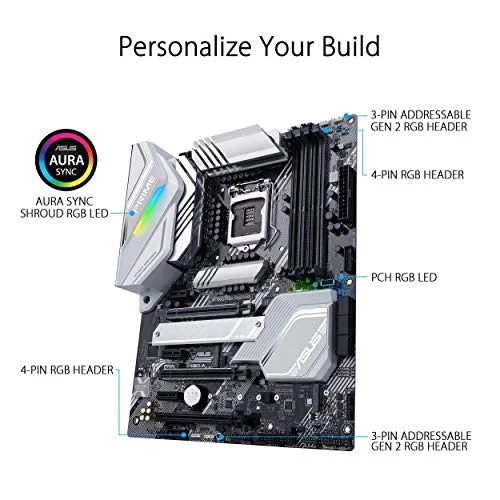

- Personalization: ASUS-Exclusive Aura Sync RGB Lighting, Including RGB Headers And Gen 2 Addressable Headers
- Immersive Gaming Audio: The Realtek S1200A Codec Offers Pristine Audio Quality To Draw You Deeper Into The Game Action Or To Enhance Your Favorite Music Tracks Or Videos.
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | PRIME Z490-A 90MB1390-M0AAY0 90MB1390-M0EAY0 |
| Launch Date | May 2020 |
| CPU Socket | LGA1200 |
| Chipset Model | Intel Z490 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3333 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4400 / DDR4-4500 / DDR4-4600 / DDR4-4800 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16, 3 × PCIe x1 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 3 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key, 2230 - E Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | PRIME Z490-A |
| SKU Code | PRIME Z490-A |
| GTIN / EAN | 192876678688 |
Price History (last 12 months)
Plots available price points within the past 12 months.
